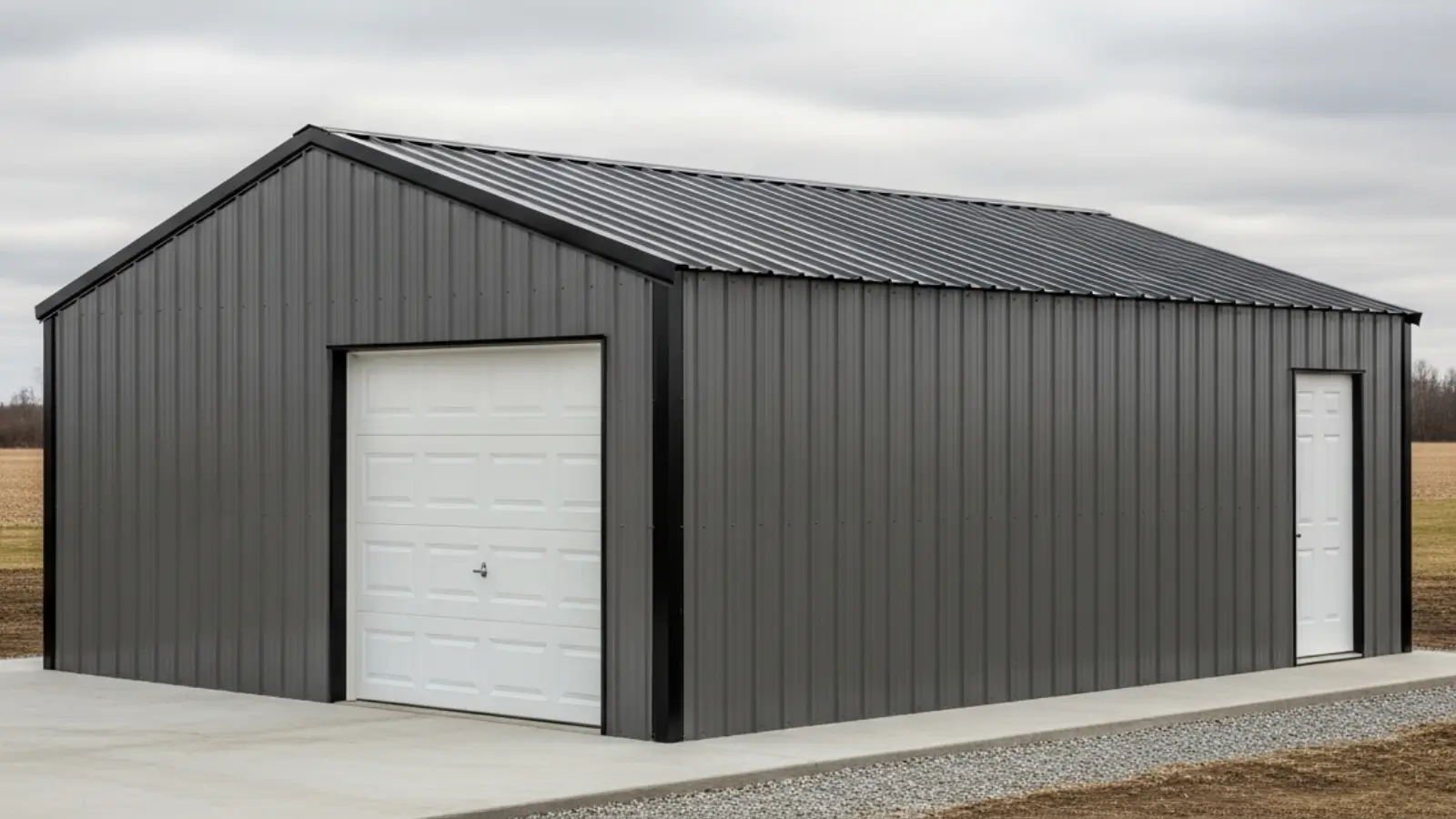

30X50X10 Steel Garage Kit – Prefab Metal Garage for Tools

Product Classification

Prefabricated structural steel building kit
Detached accessory garage or storage structure
Pre-Engineered Metal Building (PEMB) system
Physical packaged building materials shipped by freight



Technical Specifications (Quick Reference)

Building Width: 30 ft
Building Length: 50 ft
Wall Height: 10 ft
Interior Area: 1,500 sq ft

Clear Interior Height at Eave: approx 10 ft
Peak Interior Height: varies by roof pitch (gable configuration)
Roof Pitch: project-specific configuration

Structural System: Rigid-frame portal system
Interior Span: Clear-span (column-free)
Panel System: Profiled steel cladding
Panel Profile Type: Ribbed structural cladding
Connection Method: Bolted structural assembly
Field Assembly: Mechanical fastener installation

Intended Use Category: Enclosed garage or storage structure

Structural Design Basis
Final structural configuration is prepared based on confirmed installation location, environmental loading considerations, and applicable building code requirements.



Product Overview

The 30×50 format is commonly selected when property owners require significant interior depth for organized tool storage, equipment protection, and workspace planning beyond typical residential garage layouts. The 30-foot clear span provides wide interior maneuvering space, while the extended 50-foot building length supports separation between parking, storage, and designated activity zones.

This configuration is frequently specified when standard garage sizes no longer provide sufficient depth for tools, machinery, or project activities. The elongated layout allows functional sequencing from entry to rear wall without expanding structural width.

As a rigid-frame prefabricated steel garage building kit, the structure provides enclosed vehicle and equipment protection while supporting defined interior organization within a single uninterrupted structural span.

This prefab metal garage building is commonly selected for residential properties, contractor storage, rural workshops, or equipment management where deep interior layout planning is required.



Structural System Classification

Pre-Engineered Metal Building (PEMB)
Rigid-frame portal structural system
Clear-span interior width

Rigid frame geometry transfers roof and lateral loads through structural columns into foundation bearing points. Span-to-height proportions are configured to provide enclosed volume efficiency suitable for large accessory building applications.

The structural system is commonly used for garages and storage structures where interior column-free space is required.



Structural Components & Materials

Primary structural framing fabricated from structural steel members with prefabricated connection plates for bolted field assembly.

Exterior cladding formed from profiled steel panels attached to secondary framing members using mechanical fastener systems.

Steel panel systems incorporate protective coating finishes suitable for exterior building envelope applications.

Primary rigid frames are spaced according to structural design requirements determined at time of order to align with applicable building code criteria.

Structural loads are transferred through rigid frame columns to foundation bearing points. Foundation design must support vertical and lateral loads accordingly.

Rigid frame column reactions create concentrated loads at foundation bearing locations. Foundation design must account for base plate load transfer.

Primary rigid frames are designed to resist bending moments at column-rafter connections characteristic of portal frame geometry.

Foundation design, slab specifications, and interior load considerations are determined separately by the project team based on intended operational requirements.



Structural Load Determination Process

Structural loads are determined based on confirmed installation location, applicable building code requirements, and environmental loading considerations.

Documentation references general Canadian snow and wind load considerations commonly associated with this product type.

Final structural configuration is prepared at time of order based on project location and governing building regulations.



Building Code Alignment

Final structural configuration is prepared to align with applicable provincial and municipal building code requirements based on confirmed installation location.

Use classification, permitting requirements, and foundation design are determined by the authority having jurisdiction.



Size-Specific Performance Advantage

The 30-foot clear-span width provides open interior maneuvering space for vehicles, equipment, and storage systems.

The extended 50-foot building depth allows functional sequencing of interior space from entry to rear wall.

This configuration supports organized separation between parking zones, tool storage areas, and designated activity regions.

The column-free structural span allows uninterrupted placement of workbenches, shelving systems, and equipment along the building length.

This size is commonly selected when interior organization and storage depth are primary planning priorities.



Interior Functional Zoning

The elongated building depth supports structured interior zoning.

Typical layout arrangements include:

• front vehicle parking with rear storage
• central vehicle lane with side storage walls
• rear tool organization area
• equipment staging area behind parking
• long-wall shelving systems

Interior zoning depends on vehicle size, equipment footprint, and operational workflow.

Circulation pathways for vehicle entry, turning clearance, and equipment movement should be planned before fixed storage installation.



Interior Usable Space Planning

Interior usable dimensions vary depending on wall system thickness, structural framing depth, and door configuration.

Actual usable interior width and length are reduced by wall assemblies and structural members.

Workspace depth and storage capacity depend on vehicle length and interior layout planning.

Interior usable space may vary depending on door configuration, framing placement, and foundation layout.



Building Dimension Classification

Nominal building dimensions describe exterior structural footprint.

Actual finished exterior dimensions and interior clearances vary depending on panel profile, framing depth, trim systems, and foundation interface.

Interior usable width and length are typically reduced by wall system thickness and structural framing depth.

Final as-built dimensions are confirmed in structural drawings supplied with the building kit.



Authority Planning Insight

This size is commonly specified when property owners require organized tool storage, equipment staging, and structured interior activity space in addition to enclosed vehicle protection.

Extended-depth garage layouts are frequently selected where wider buildings are restricted by lot width, but additional interior length is permitted.

Long-format garage structures are commonly planned for long-term enclosed storage and work activities rather than temporary accessory enclosures.

Within garage sizing progression:

30×40 → large clear-span workspace
30×50 → depth-optimized storage and tool organization
36×50 → heavy equipment capacity
40×60 → large-format multi-use enclosure



Delivered Package Description

Building components are delivered in packaged steel sections prepared for offloading and staged assembly at the installation site.

Delivered materials typically include:

• prefabricated primary structural members
• secondary framing components
• profiled steel panel systems
• hardware and fastening systems
• labeled assembly components
• printed structural documentation

Components are packaged for freight shipment.



Assembly Complexity

Large accessory structure installation.

Moderate to high assembly complexity depending on site conditions.

Assembly is typically performed by the owner’s selected contractor or installation team.

Typical project planning includes site preparation, foundation installation, delivery scheduling, and on-site assembly.



Lifecycle & Durability Context

Service life depends on coating system performance, enclosure integrity, foundation stability, and maintenance practices.

Steel enclosure systems of this scale are commonly used for long-term enclosed storage and equipment protection infrastructure.



Manufacturing & Fabrication Standards

Structural steel components are fabricated using standardized manufacturing processes for prefabricated building systems.

Components are produced for mechanical assembly using prefabricated connection geometry and labeled structural members.

Protective exterior coating systems are applied to cladding components to support exterior building envelope function.



Condensation & Ventilation Planning

Condensation control depends on site climate conditions, interior usage patterns, and ventilation design.

Ventilation strategies, insulation systems, and moisture management solutions are determined separately based on project requirements.

Proper condensation management planning is recommended for enclosed steel structures in Canadian climates.



Structural Safety & Anchoring Considerations

Building performance depends on proper foundation design, anchoring, erection procedures, and compliance with supplied structural documentation.

Installation must follow accepted construction practices and applicable building regulations.

Foundation design must support concentrated structural loads and anchoring forces.



What’s Included

Structural steel framing components
Steel wall and roof panels
Hardware and fastening systems
Printed structural documentation



What’s Not Included

Foundation construction
Installation labor
Overhead doors
Windows
Insulation systems
Electrical work
Interior finishing



Typical Optional Components (Not Included)

Overhead sectional doors
Walk-in service doors
Insulation systems
Ventilation systems
Interior liner panels
Window systems
Electrical integration

Optional components are selected separately based on project requirements.



Freight Delivery Explanation

Building components are shipped by freight as packaged steel materials.

Shipment consists of multiple bundled steel components.
Total shipment weight typically ranges from approximately 7,000 to 14,000 lbs depending on configuration.
Exact shipment details are confirmed prior to dispatch.

Unloading equipment and staging space must be arranged by the buyer.

Delivery scheduling is coordinated prior to shipment.



Site Planning Considerations

Foundation design
Setback requirements
Driveway alignment
Delivery vehicle access
Assembly staging area
Municipal permitting requirements



Application Classification

Typical use classification: Detached accessory building used for vehicle storage and general property storage; interior work activities determined by owner use and local regulations.

Use category and occupancy classification are determined by the authority having jurisdiction.



Structural Responsibility Statement

Building performance depends on proper foundation design, anchoring, erection procedures, and compliance with supplied structural documentation.

Installation must be performed in accordance with applicable building regulations and accepted construction practices.



Product Scope Notice

This product is a physical prefabricated steel building kit shipped by freight.
No installation, construction, engineering consulting, or labor services are sold or provided.
Ownership of all physical components transfers to the buyer upon shipment.
This listing is for packaged building materials only and does not represent a constructed structure.



Canadian Performance Context

Structural documentation references general Canadian snow and wind load considerations commonly associated with this product type.

Steel enclosure construction provides enclosed protection from snow accumulation, wind exposure, and seasonal weather conditions typical across Canadian environments.



Decision Summary

Choose this size if you need:

• deep interior storage capacity
• organized tool and equipment space
• dedicated interior activity area
• clear-span layout flexibility

Consider larger sizes if:

• large equipment requires additional width, height, or door clearance
• commercial-scale storage is required
• expanded vertical clearance is needed
