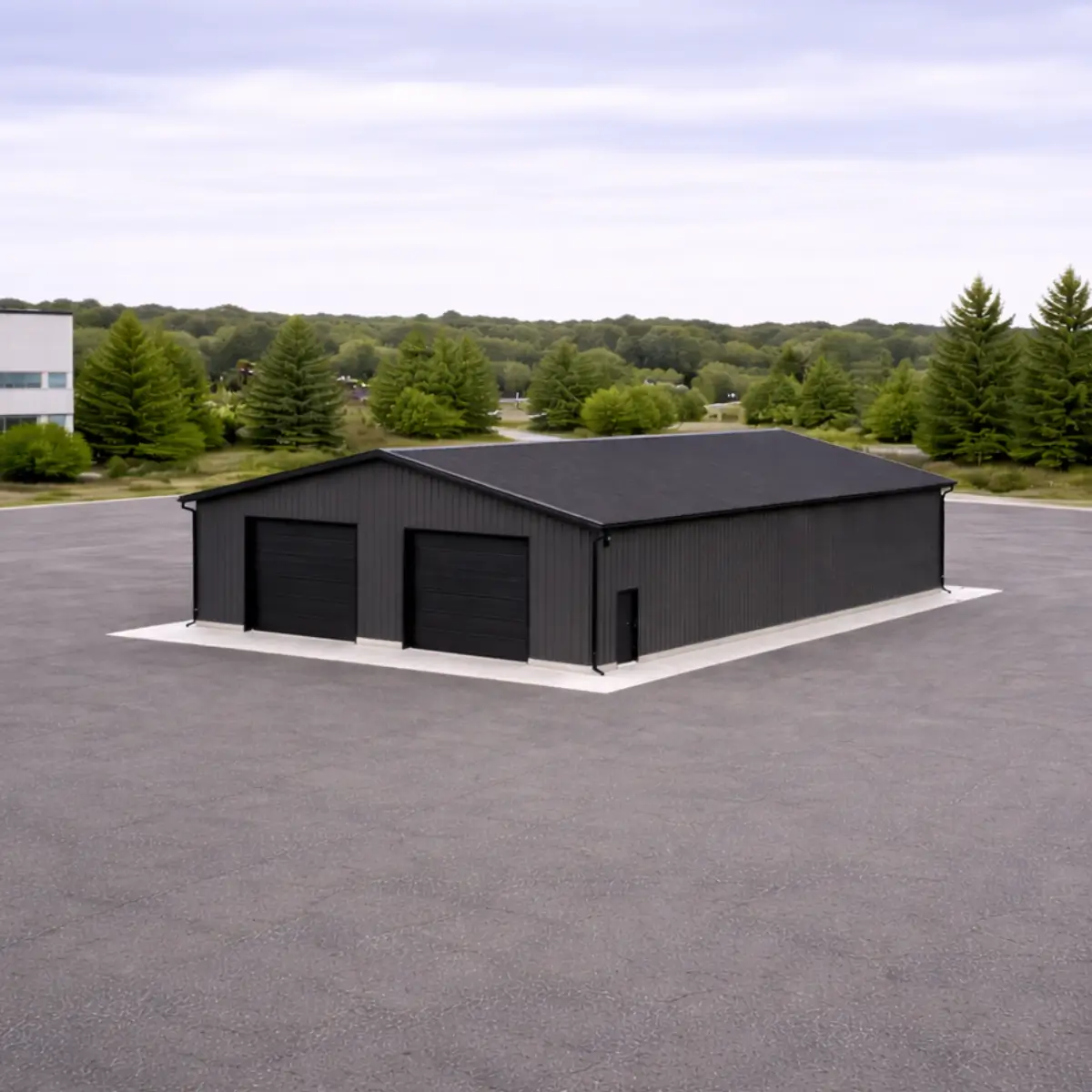

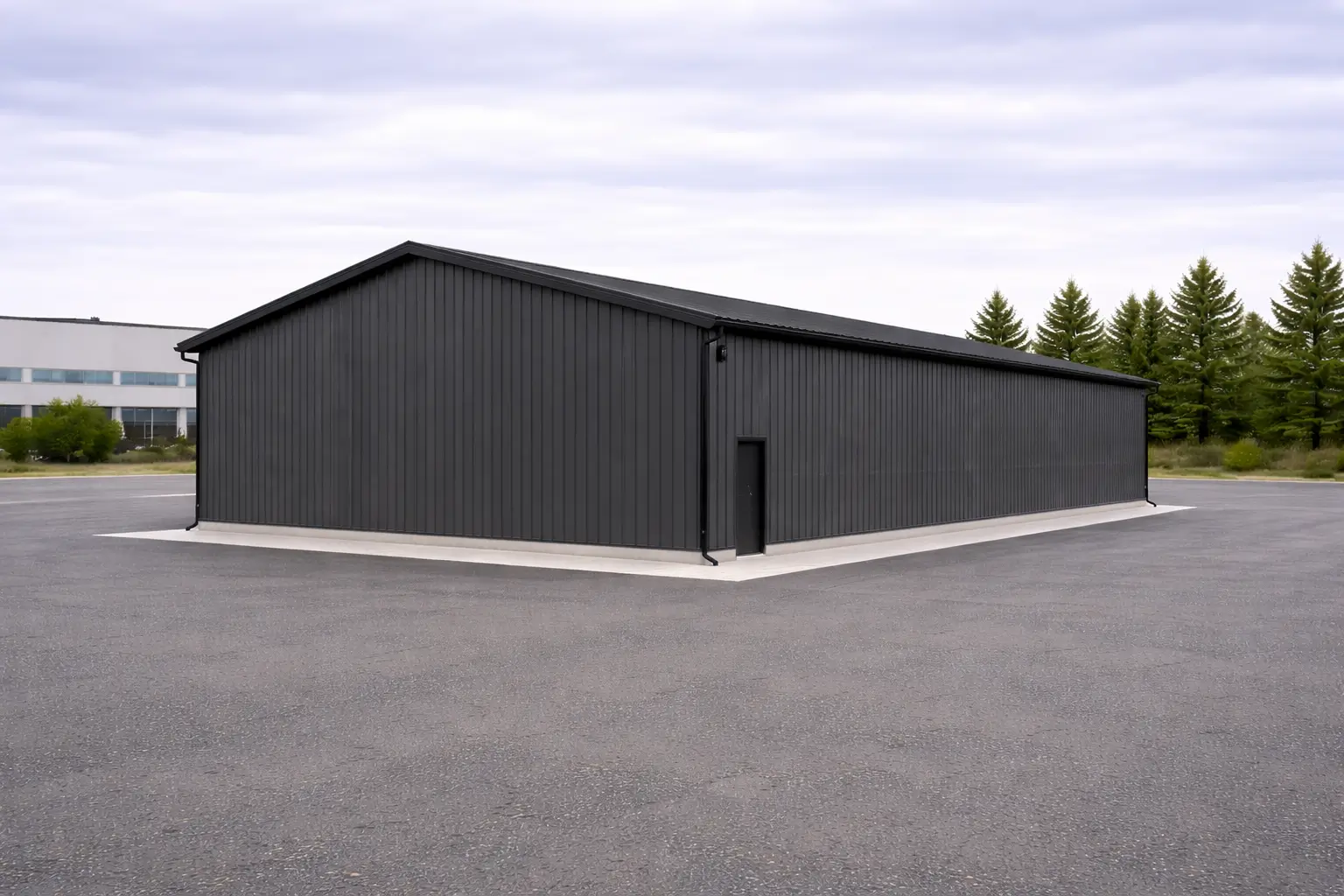

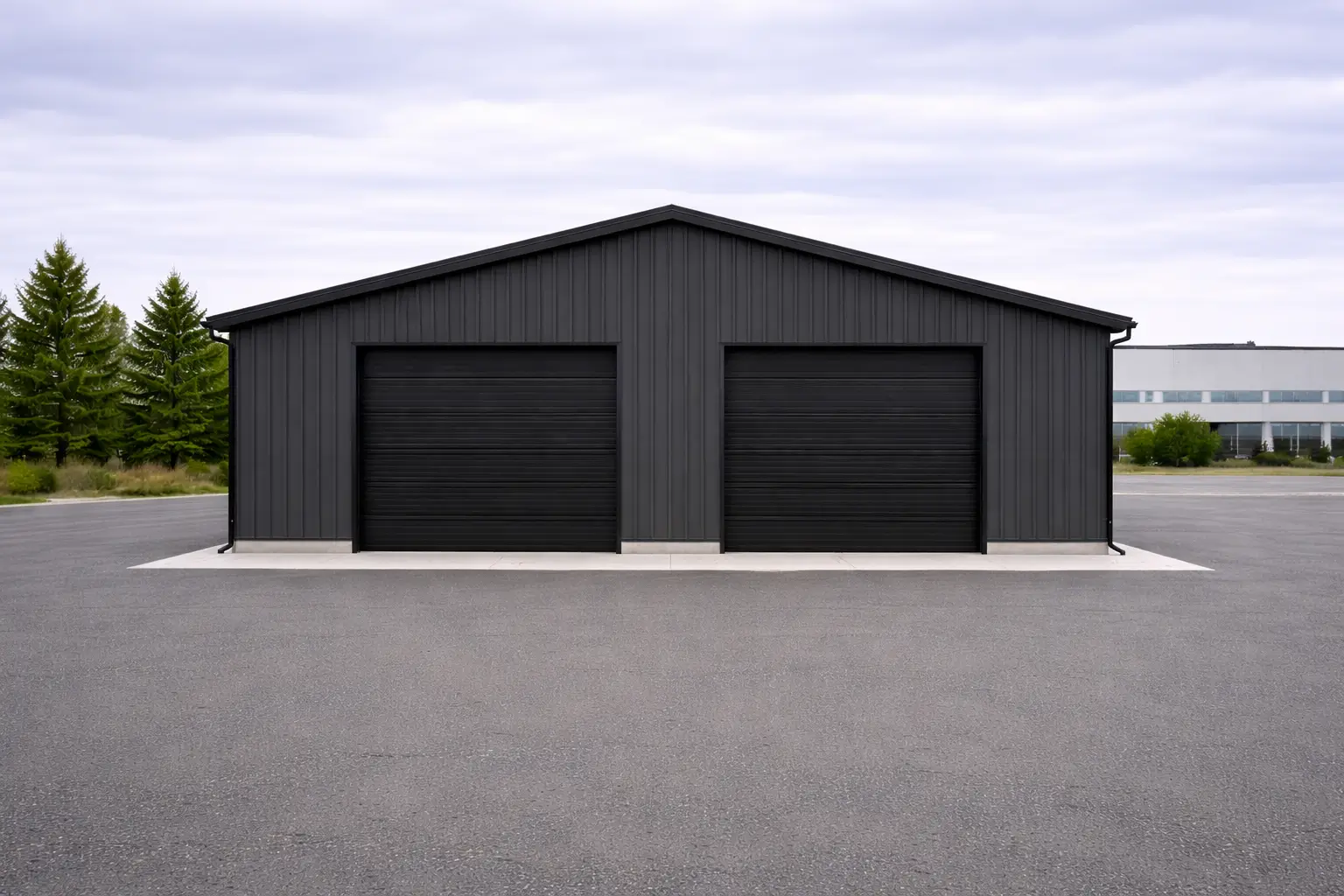

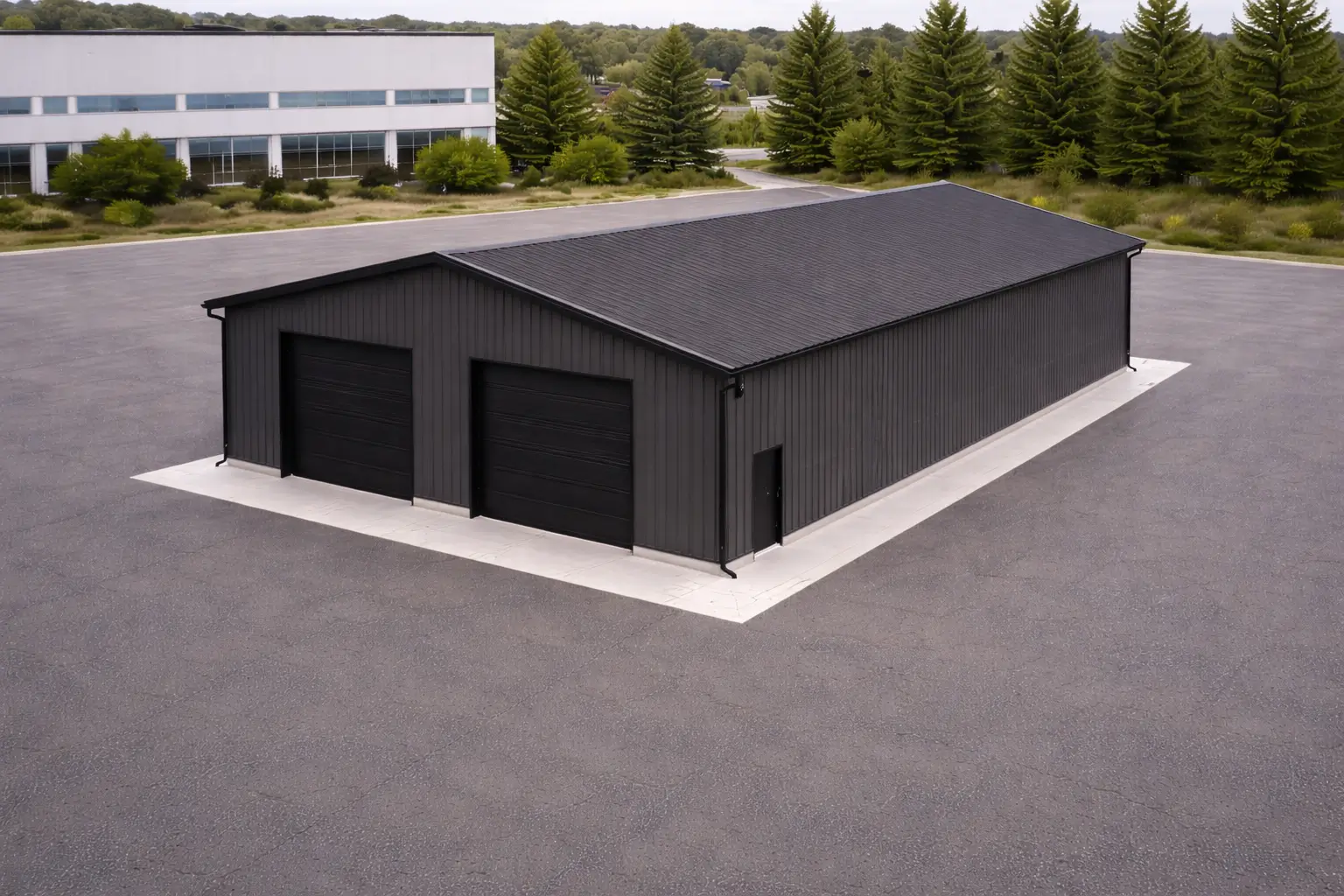

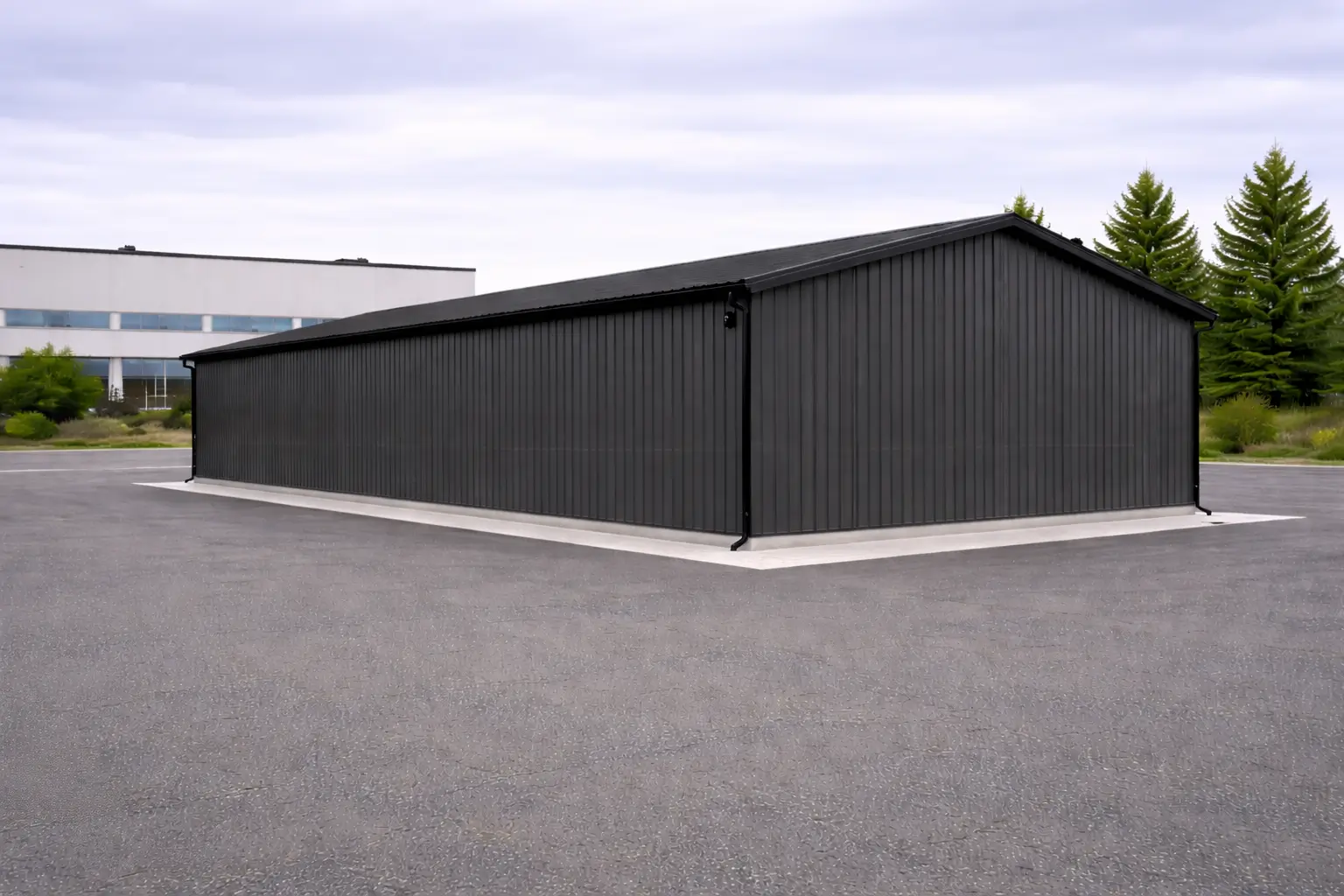

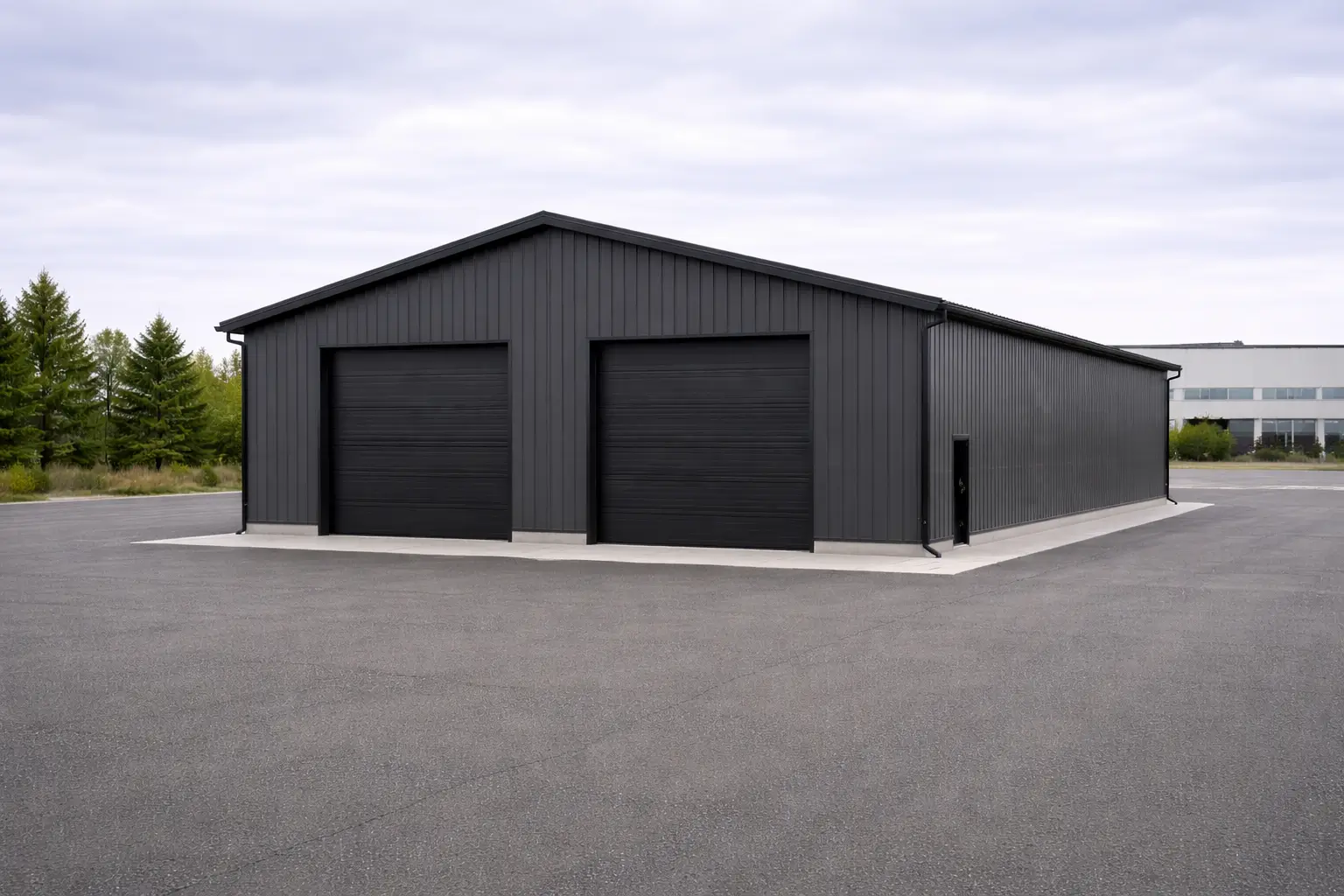

30×60×16 Clear Span Commercial Workshop

Designed for Canadian commercial operators requiring an unobstructed interior workspace within a structured 30 ft clear-span operational environment.

The 60 ft building length supports defined front-to-rear workflow organization, while the 16 ft wall height provides sufficient clearance for service operations, equipment access, and overhead utilities.

This configuration balances workspace depth and interior clearance without transitioning into high-clearance industrial building classifications.



Operational Scale Classification

This configuration is classified within the 30 ft width commercial workshop category.

It is commonly selected for:

Commercial service operations
Light equipment servicing
Trades-based businesses
Commercial fleet maintenance
Industrial supply operations

Unlike contractor-scale workshops, this configuration emphasizes organized commercial workflow depth and interior operational structure.

The extended 60 ft length allows workspace separation between intake, service, and staging activities.



Commercial Workflow Layout Model

Typical interior planning may include:

Vehicle or equipment intake zone
Primary service workspace
Secondary work or assembly area
Rear staging and materials storage

For example, a commercial service vehicle or equipment unit positioned within the front service zone can be serviced while maintaining separate rear staging space for parts storage or secondary tasks.

Vehicle positioning and workflow depend on door placement, equipment layout, and interior workspace configuration.

The 30 ft clear span allows unobstructed vehicle positioning while preserving circulation space along both sidewalls.



Technical Specifications

Building Width: 30 ft
Building Length: 60 ft
Wall Height at Eave: 16 ft
Interior Area: 1,800 sq ft

Clear Span: 30 ft rigid structural frame
Structural System: Clear-span rigid-frame PEMB configuration
Roof Type: Gable
Peak Height: Varies depending on roof pitch



Interior Volume Capacity

Approximate enclosed volume: 28,800 cubic feet before interior installations.

The 16 ft configuration provides expanded vertical workspace while maintaining manageable interior air volume for heating efficiency.

This balance supports commercial workspace flexibility without the heating demands associated with taller high-clearance industrial buildings.



Structural Behaviour and Load Path

Vertical gravity loads and lateral wind forces transfer through rigid structural rafters into frame columns and then through base plate assemblies into foundation bearing zones.

Structural reactions include axial compression forces, lateral shear forces, and overturning moment effects generated by wind and roof loads.

The clear-span rigid frame system eliminates interior columns, allowing uninterrupted workspace and flexible interior planning.

Rigid frame base reactions create concentrated structural load transfer at column locations, which must be supported by reinforced concrete foundation systems designed for project-specific loading conditions.



Structural Configuration Variability

Final structural member sizes, frame spacing, and connection detailing vary based on:

Installation location
Exposure classification
Door opening configuration
Applicable Canadian building code loading requirements

Frame spacing and connection detailing are finalized during structural engineering configuration to balance structural efficiency and environmental loading demands.



Functional Impact of 16 ft Wall Height

The 16 ft eave height supports:

Commercial service vehicles
Equipment storage systems
Interior lighting installations
Suspended utilities and mechanical systems
Overhead storage solutions

Typical light-duty two-post vehicle lifts may require approximately 11–13 ft of working clearance depending on lift model and vehicle height.

The 16 ft configuration provides additional overhead workspace while maintaining a manageable interior volume for heating performance.



Door Openings and Equipment Access

Clear opening height for doors will always be less than nominal wall height due to structural header depth, door track configuration, roof slope, and framing clearance.

Door dimensions must be coordinated with structural drawings before procurement to ensure proper equipment access and operational clearance.

Vehicle height and roof-mounted equipment should be confirmed during planning.



Interior Clearance Planning

Available interior clearance may be reduced by:

Roof purlin depth
Lighting installations
Insulation systems
Interior liner assemblies

These factors should be considered when planning equipment placement, storage systems, and mechanical installations.



Foundation and Slab Planning

Concrete foundations and slabs are not included with this building kit.

Commercial workshop operations may introduce equipment loads, storage systems, or vehicle traffic requiring slab reinforcement designed for intended use.

Foundation systems must be designed to resist axial compression, lateral forces, and overturning reactions generated by the structural frame.



Municipal Planning Considerations – Canada

Commercial workshop buildings may require:

Zoning compliance review
Setback verification
Driveway and service access confirmation
Building height verification

Permitting requirements are determined by the authority having jurisdiction within the applicable Canadian municipality.



Environmental and Canadian Performance Context

Steel enclosure systems protect interior operations from precipitation, wind exposure, and seasonal temperature variation typical across Canadian climates.

Interior heating demand is influenced by building insulation, door operation frequency, and interior air volume.

Environmental loading requirements vary by province and exposure classification and are confirmed during structural engineering configuration.



Operational Suitability Matrix

Choose this size if:

You require a commercial workspace with defined workflow zones
Unobstructed interior workspace is important
Moderate interior clearance supports your operations
You need additional depth for workspace organization

Consider a taller configuration if:

Significant vertical equipment clearance is required
Large vehicle lifts or tall equipment are planned

Consider a wider building if:

Multiple vehicle service positions are required
Commercial throughput demands greater maneuvering width



Delivered Package Contents

Primary rigid structural frames
Secondary framing components
Steel roof panels
Steel wall panels
Mechanical fastening systems
Structural documentation package

Supplied as packaged structural materials.



Freight Delivery

This product consists of prefabricated steel building materials shipped by freight within Canada. Unloading and site staging are arranged by the buyer. No constructed building is included.



Assembly Requirements

Building erection is performed by the buyer’s selected contractor.

Temporary bracing, structural alignment verification, bolt torque control, and installation sequencing must follow supplied structural documentation.



What Is Included

Structural steel framing
Roof and wall panels
Fastening hardware
Structural documentation package



What Is Not Included

Concrete foundation
Installation labour
Overhead doors
Electrical systems
Insulation systems
Interior finishing



Buyer Input Requirements

Installation location
Door size and clearance requirements
Vehicle or equipment height confirmation
Operational equipment loads
Future expansion considerations



Scope and Responsibility

This product consists of prefabricated structural building materials only. No site-specific engineering services are included beyond the supplied structural documentation package. Building performance depends on proper foundation design, anchorage, erection procedures, and compliance with supplied structural drawings. Ownership transfers at shipment.
