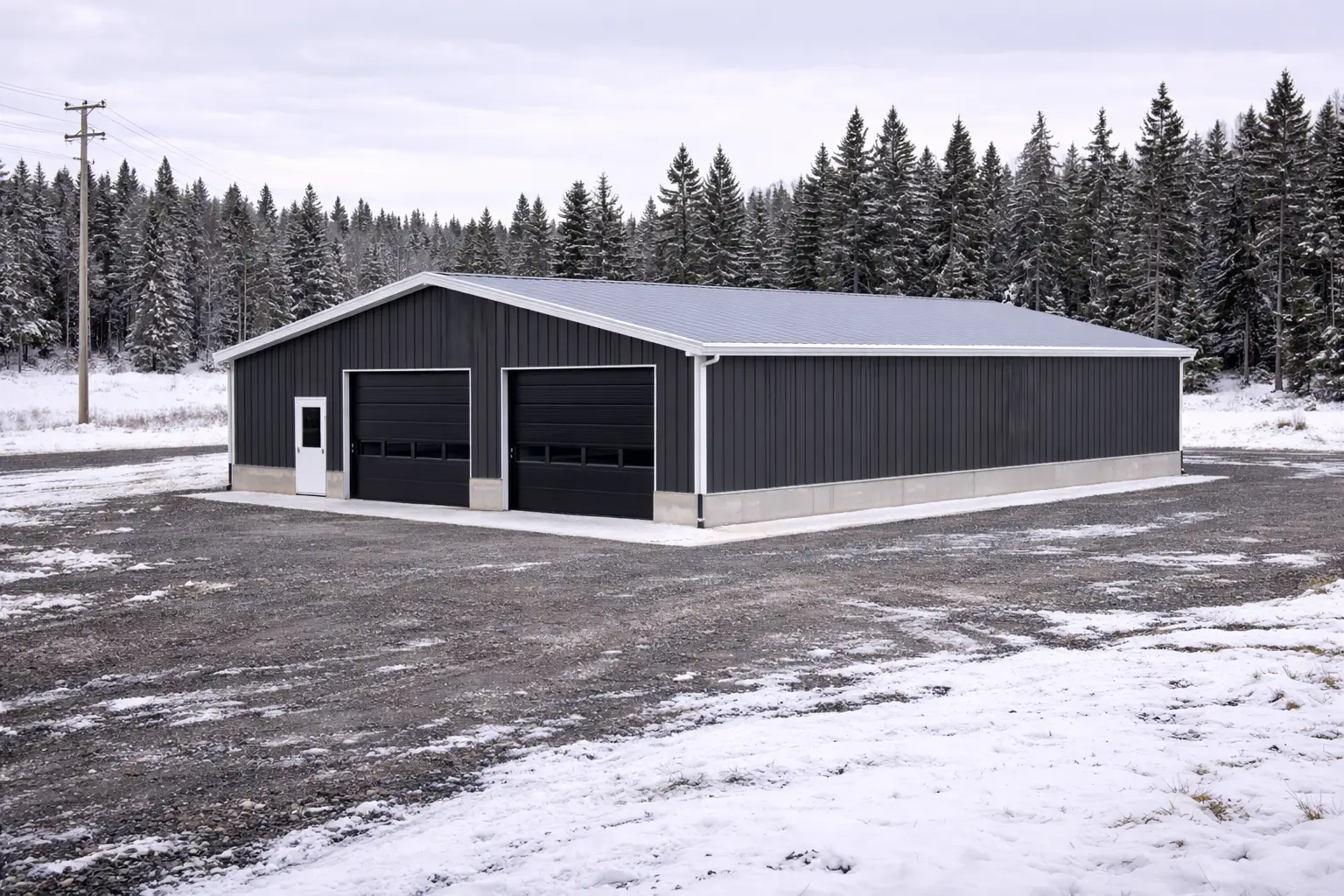

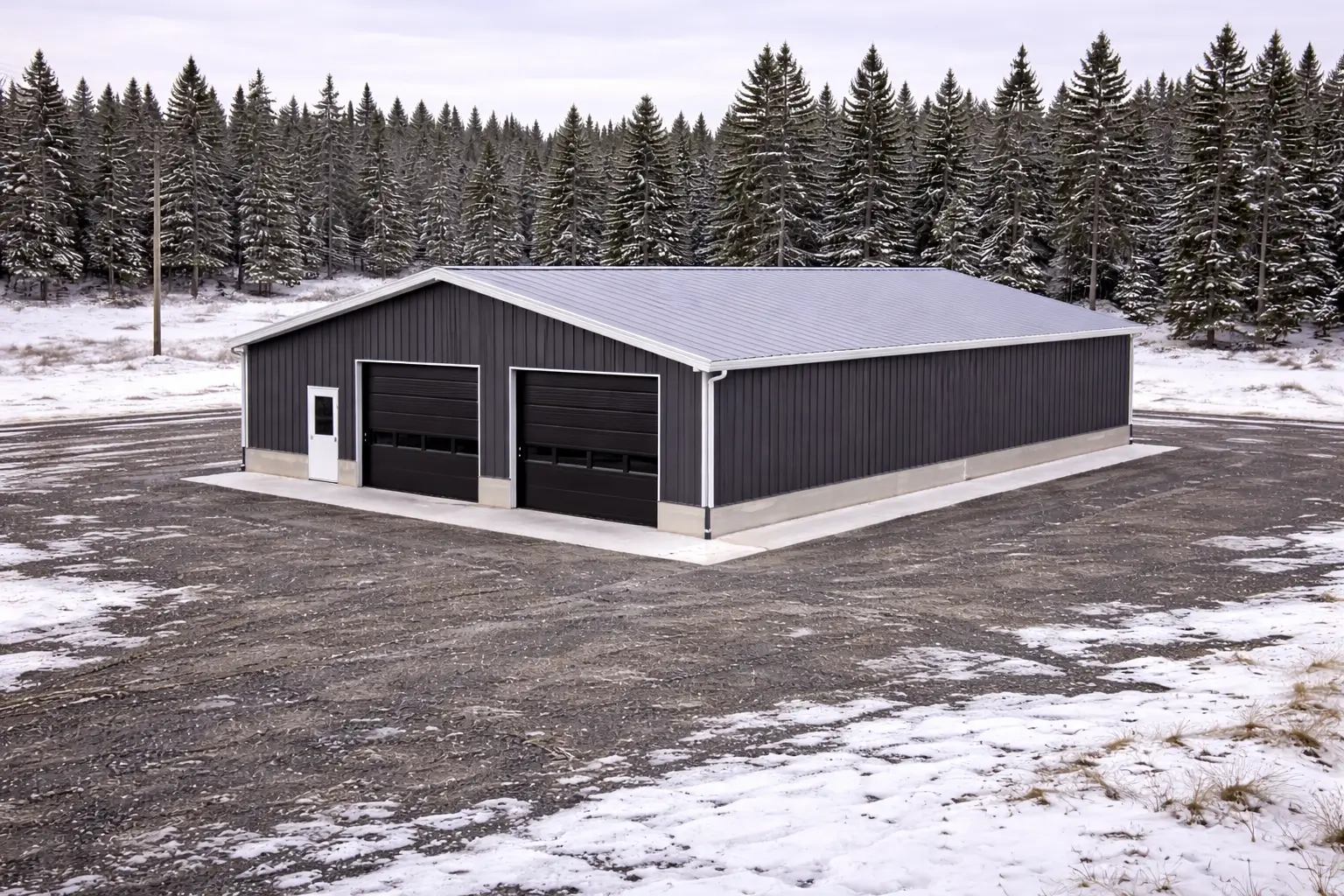

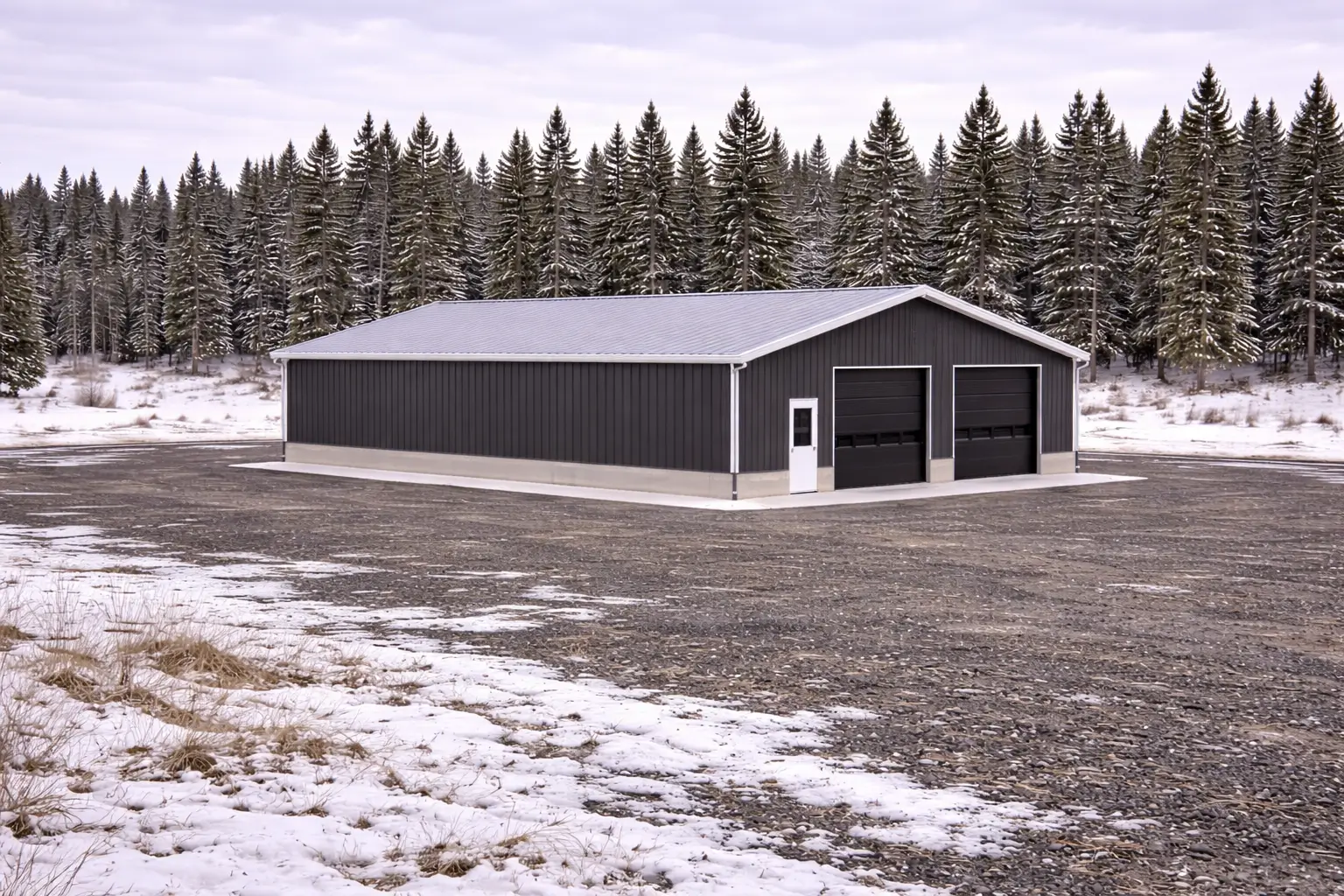

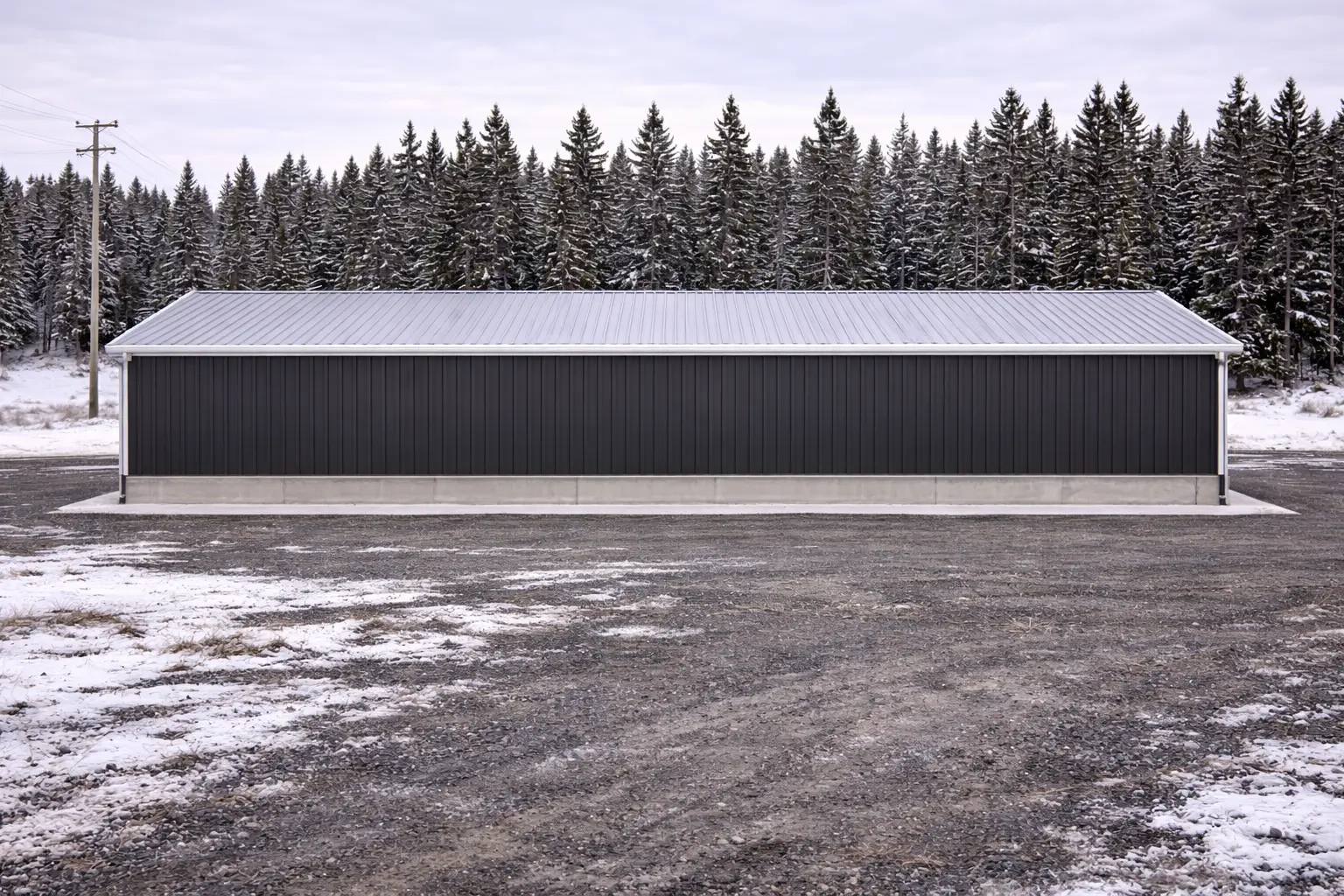

40x60x18 Heavy Duty Industrial Workshop

Designed for Canadian industrial operators requiring a wide clear-span workspace with elevated vertical clearance and durable structural performance.

The 40 ft clear span increases maneuvering envelope for large equipment positioning, while the 60 ft building length supports defined operational workflow between intake, active work zones, and material staging.

The 18 ft wall height expands vertical operating capacity for industrial equipment, overhead systems, and elevated storage installations.

This configuration transitions from commercial workshop scale into industrial-grade operational environments.



Operational Scale Classification

This configuration is classified within the 40 ft width industrial workshop category.

It is commonly selected for:

Industrial equipment servicing
Heavy mechanical repair operations
Fabrication and welding shops
Industrial maintenance facilities
Material handling and assembly operations

The wider structural span allows improved maneuvering capability for larger equipment while maintaining unobstructed interior workspace.

The extended 60 ft building length supports workflow separation between equipment intake, active work areas, and rear staging zones.



Industrial Workflow Layout Model

Typical interior planning may include:

Equipment intake and positioning zone
Primary industrial work area
Fabrication or assembly workspace
Rear material staging and storage

For example, heavy equipment or service vehicles positioned within the front work zone can be serviced while maintaining separate rear staging areas for parts storage or secondary operations.

Vehicle positioning and workflow depend on door placement, equipment layout, and interior workspace configuration.

The 40 ft clear span allows unobstructed equipment movement while preserving circulation space along both sidewalls.



Technical Specifications

Building Width: 40 ft
Building Length: 60 ft
Wall Height at Eave: 18 ft
Interior Area: 2,400 sq ft

Clear Span: 40 ft rigid structural frame
Structural System: Clear-span rigid-frame PEMB configuration
Roof Type: Gable
Peak Height: Varies depending on roof pitch



Interior Volume Capacity

Approximate enclosed volume: 43,200 cubic feet before interior installations.

The increased vertical envelope provides expanded workspace for industrial equipment operations, overhead utilities, and elevated storage systems.

While taller structures increase interior air volume, they enable operational flexibility for industrial processes that require greater working height.



Structural Behaviour and Load Path

Vertical gravity loads and lateral wind forces transfer through rigid structural rafters into frame columns and then through base plate assemblies into foundation bearing zones.

Structural reactions include axial compression forces, lateral shear forces, and overturning moment effects generated by wind and roof loads.

The rigid-frame clear-span system eliminates interior columns, enabling uninterrupted industrial workspace and flexible equipment layout.

Rigid frame base reactions produce concentrated structural loads at column locations that must be transferred into reinforced concrete foundation systems designed for project-specific load intensity.

The increased wall height increases tributary wind area and overturning demand compared with lower structures, influencing column sizing and anchor tension requirements during structural engineering configuration.



Structural Configuration Variability

Final structural member sizes, frame spacing, and connection detailing vary based on:

Installation location
Exposure classification
Door opening configuration
Applicable Canadian building code loading requirements

Frame spacing and connection detailing are finalized during structural engineering configuration to balance structural efficiency and environmental loading demands.



Functional Impact of 18 ft Wall Height

The 18 ft eave height supports:

Large service vehicles
Industrial equipment servicing
Elevated storage systems
Overhead mechanical installations
Suspended utilities and ventilation systems

Expanded vertical clearance enables installation of larger equipment systems and overhead infrastructure within the building interior.

This height classification supports industrial operations that require increased working height beyond standard commercial workshops.



Door Openings and Equipment Access

Clear opening height for doors will always be less than nominal wall height due to structural header depth, door track configuration, roof slope, and framing clearance.

Door openings must be coordinated with structural drawings to ensure adequate clearance for equipment access and operational workflow.

Equipment height and clearance requirements should be confirmed during planning.



Interior Clearance Planning

Available interior clearance may be reduced by:

Roof purlin depth
Lighting installations
Insulation systems
Interior liner assemblies
Mechanical systems

These factors should be considered when planning equipment placement and overhead installations.



Foundation and Slab Planning

Concrete foundations and slabs are not included with this building kit.

Industrial workshop operations may introduce heavy equipment loads, fabrication machinery, or vehicle traffic requiring slab reinforcement designed for intended operational loads.

Foundation systems must be engineered to resist axial compression forces, lateral forces, and overturning reactions generated by structural loading.



Municipal Planning Considerations – Canada

Industrial workshop buildings may require:

Zoning compliance review
Setback verification
Industrial land-use confirmation
Driveway and heavy equipment access planning

Permitting requirements are determined by the authority having jurisdiction within the applicable Canadian municipality.



Environmental and Canadian Performance Context

Steel enclosure systems protect interior operations from precipitation, wind exposure, and seasonal temperature variation typical across Canadian climates.

Interior heating demand is influenced by insulation strategy, door operation frequency, and interior air volume.

Environmental loading requirements vary by province and exposure classification and are confirmed during structural engineering configuration.



Operational Suitability Matrix

Choose this size if:

You require industrial-scale workspace
Large equipment servicing is required
Expanded vertical clearance is necessary
Industrial fabrication or mechanical work is planned

Consider a wider building if:

Multiple equipment work positions are required
Large material handling operations are planned

Consider a taller structure if:

Specialized industrial equipment requires additional vertical clearance



Delivered Package Contents

Primary rigid structural frames
Secondary framing components
Steel roof panels
Steel wall panels
Mechanical fastening systems
Structural documentation package

Supplied as packaged structural materials.



Freight Delivery

This product consists of prefabricated steel building materials shipped by freight within Canada. Unloading and site staging are arranged by the buyer. No constructed building is included.



Assembly Requirements

Building erection is performed by the buyer’s selected contractor.

Temporary bracing, structural alignment verification, bolt torque control, and installation sequencing must follow supplied structural documentation.



What Is Included

Structural steel framing
Roof and wall panels
Fastening hardware
Structural documentation package



What Is Not Included

Concrete foundation
Installation labour
Overhead doors
Electrical systems
Insulation systems
Interior finishing



Buyer Input Requirements

Installation location
Door size and clearance requirements
Equipment height confirmation
Operational equipment loads
Future expansion considerations



Scope and Responsibility

This product consists of prefabricated structural building materials only. No site-specific engineering services are included beyond the supplied structural documentation package. Building performance depends on proper foundation design, anchorage, erection procedures, and compliance with supplied structural drawings. Ownership transfers at shipment.
