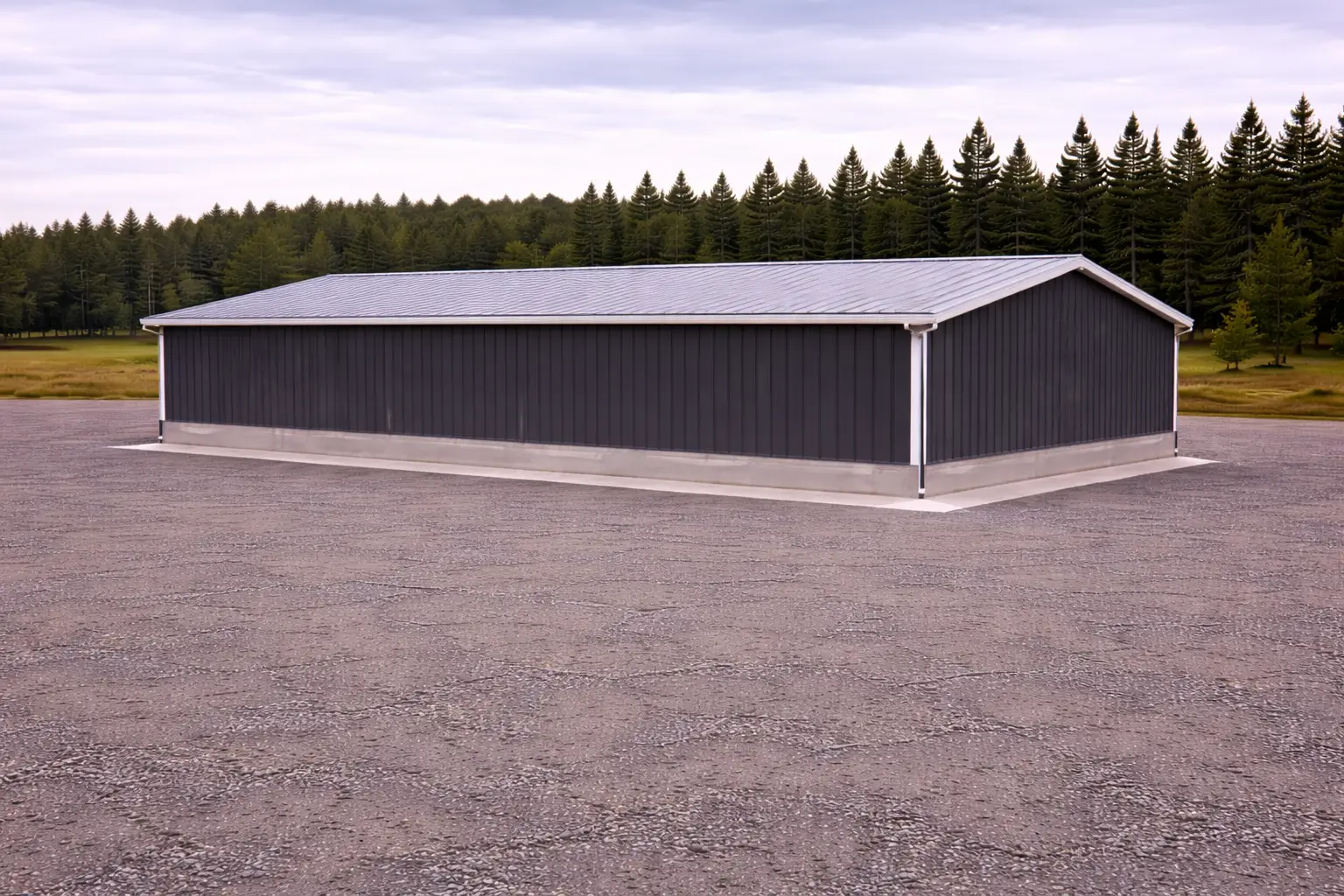

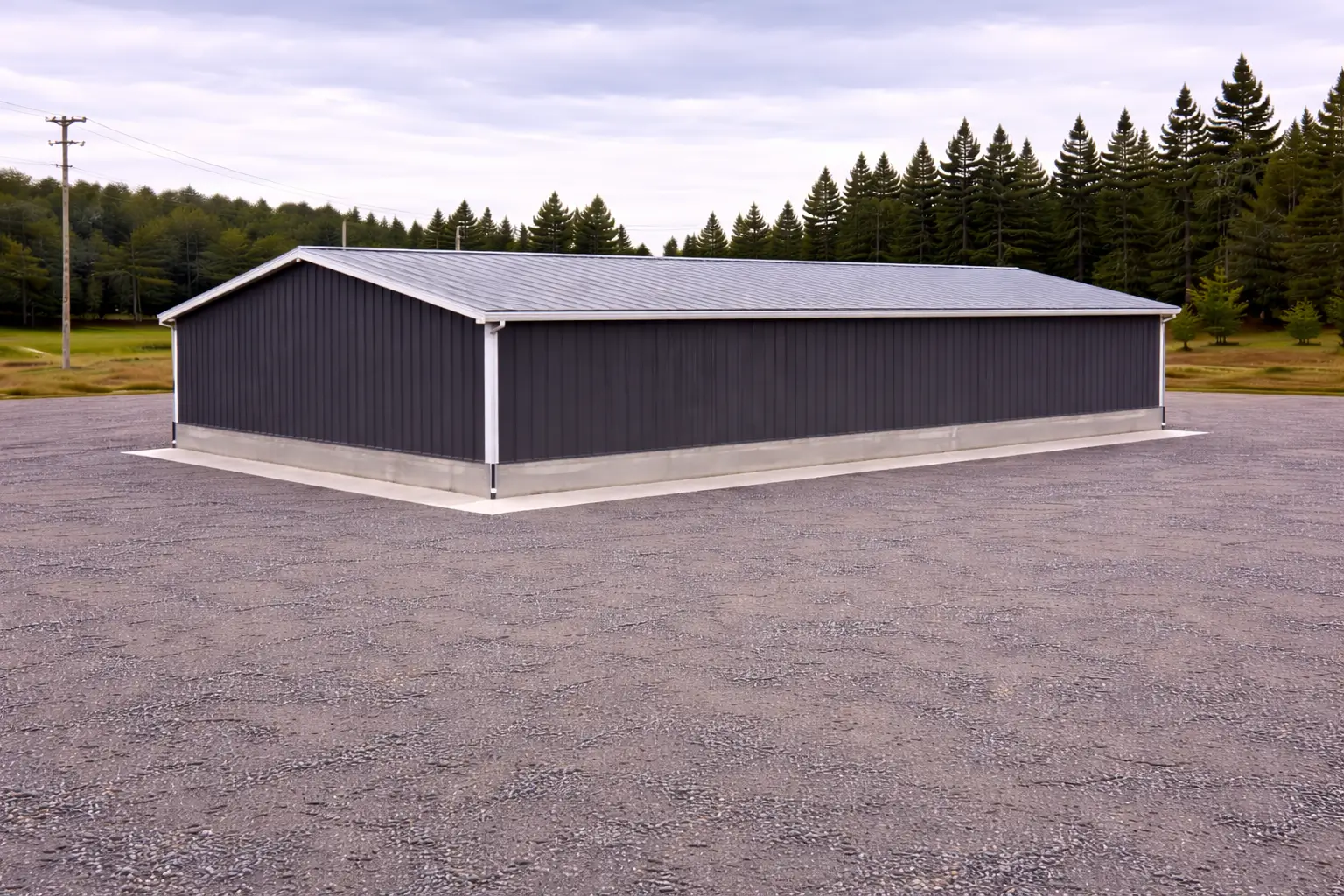

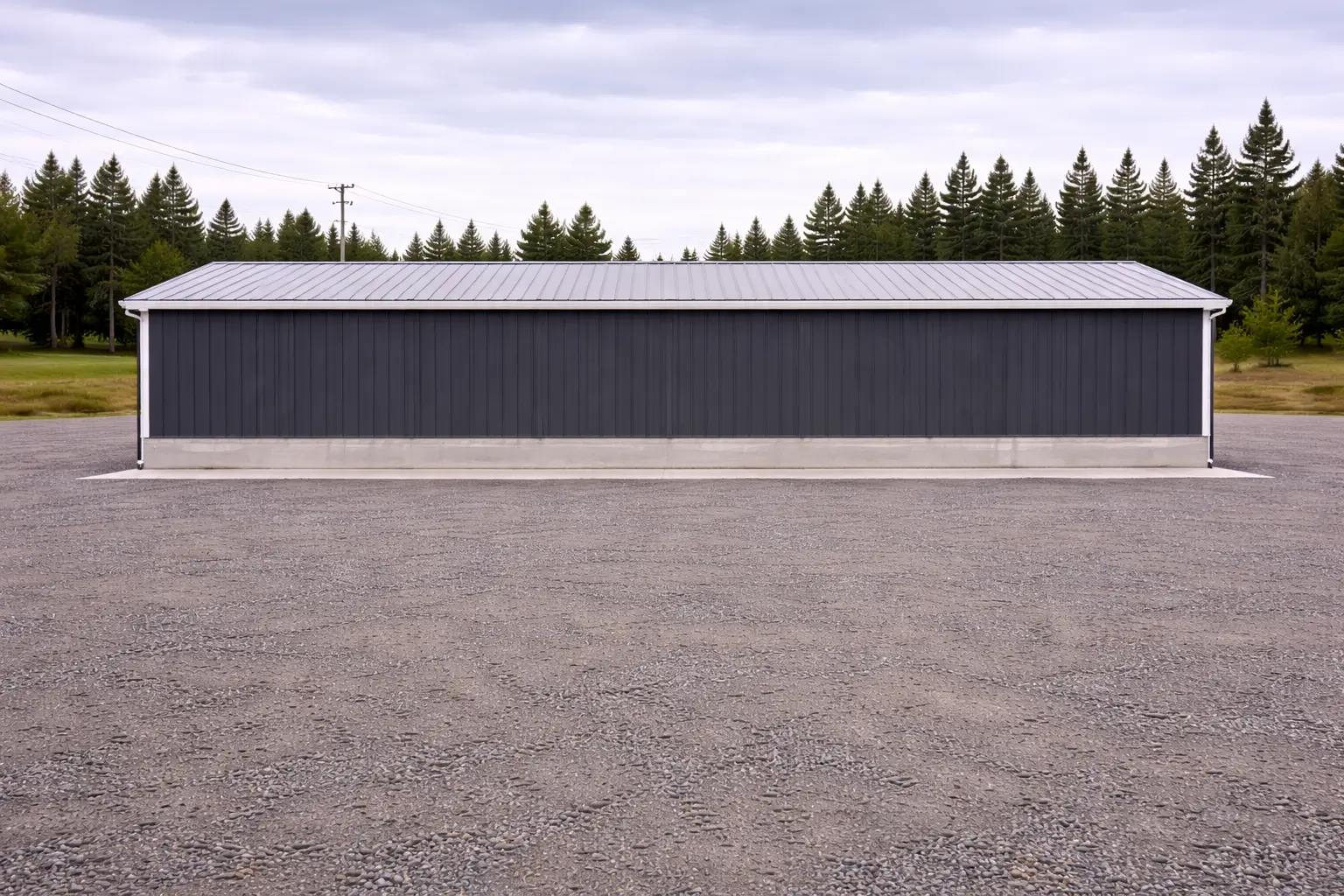

40x60x16 Commercial Workshop Kit

Designed for Canadian commercial operators requiring adaptable workspace within a wide clear-span operational footprint.

The 40 ft building width provides increased maneuvering space for equipment and vehicles, while the 60 ft building length supports organized operational zones for servicing, storage, and workspace activities.

The 16 ft wall height provides balanced vertical clearance for commercial operations, supporting equipment access, overhead utilities, and flexible interior workspace arrangements.

This configuration prioritizes operational versatility within a commercial workshop environment.



Operational Scale Classification

This configuration is classified within the 40 ft width commercial workshop category.

It is commonly selected for:

Commercial service operations
Equipment maintenance businesses
Storage and distribution operations
Construction company facilities
General business workshop environments

The expanded 40 ft span increases maneuvering capacity compared with narrower commercial workshops while maintaining an efficient commercial building scale.

The 60 ft building length supports separation between service areas, workspace zones, and storage areas.



Commercial Workflow Layout Model

Typical interior planning may include:

Vehicle or equipment intake zone
Primary work or service area
Secondary workspace or storage zone
Rear staging or inventory storage area

For example, service vehicles or commercial equipment positioned within the front workspace can be serviced while rear areas support material storage or secondary operational tasks.

Vehicle positioning and workflow depend on door placement, equipment layout, and interior workspace configuration.

The 40 ft clear span supports unobstructed equipment movement while preserving circulation space along both sidewalls.



Technical Specifications

Building Width: 40 ft
Building Length: 60 ft
Wall Height at Eave: 16 ft
Interior Area: 2,400 sq ft

Clear Span: 40 ft rigid structural frame
Structural System: Clear-span rigid-frame PEMB configuration
Roof Type: Gable
Peak Height: Varies depending on roof pitch



Interior Volume Capacity

Approximate enclosed volume: 38,400 cubic feet before interior installations.

The 16 ft configuration provides adequate vertical clearance for most commercial operations while maintaining manageable heating volume compared with taller industrial buildings.

This height classification supports operational flexibility while balancing interior air volume and heating efficiency.



Structural Behaviour and Load Path

Vertical gravity loads and lateral wind forces transfer through rigid structural rafters into frame columns and then through base plate assemblies into foundation bearing zones.

Structural reactions include axial compression forces, lateral shear forces, and overturning moment effects generated by wind and roof loads.

The clear-span rigid frame eliminates interior columns, allowing uninterrupted commercial workspace and flexible interior layout planning.

Rigid frame base reactions produce concentrated structural loads at column locations that must be transferred into reinforced concrete foundation systems designed for project-specific load intensity.



Structural Configuration Variability

Final structural member sizes, frame spacing, and connection detailing vary based on:

Installation location
Exposure classification
Door opening configuration
Applicable Canadian building code loading requirements

Frame spacing and connection detailing are finalized during structural engineering configuration to balance structural efficiency and environmental loading demands.



Functional Impact of 16 ft Wall Height

The 16 ft eave height supports:

Commercial vehicles
Equipment servicing operations
Overhead lighting installations
Mechanical systems and utilities
Elevated storage systems

This height provides adequate clearance for most commercial workspace operations while maintaining manageable interior air volume.

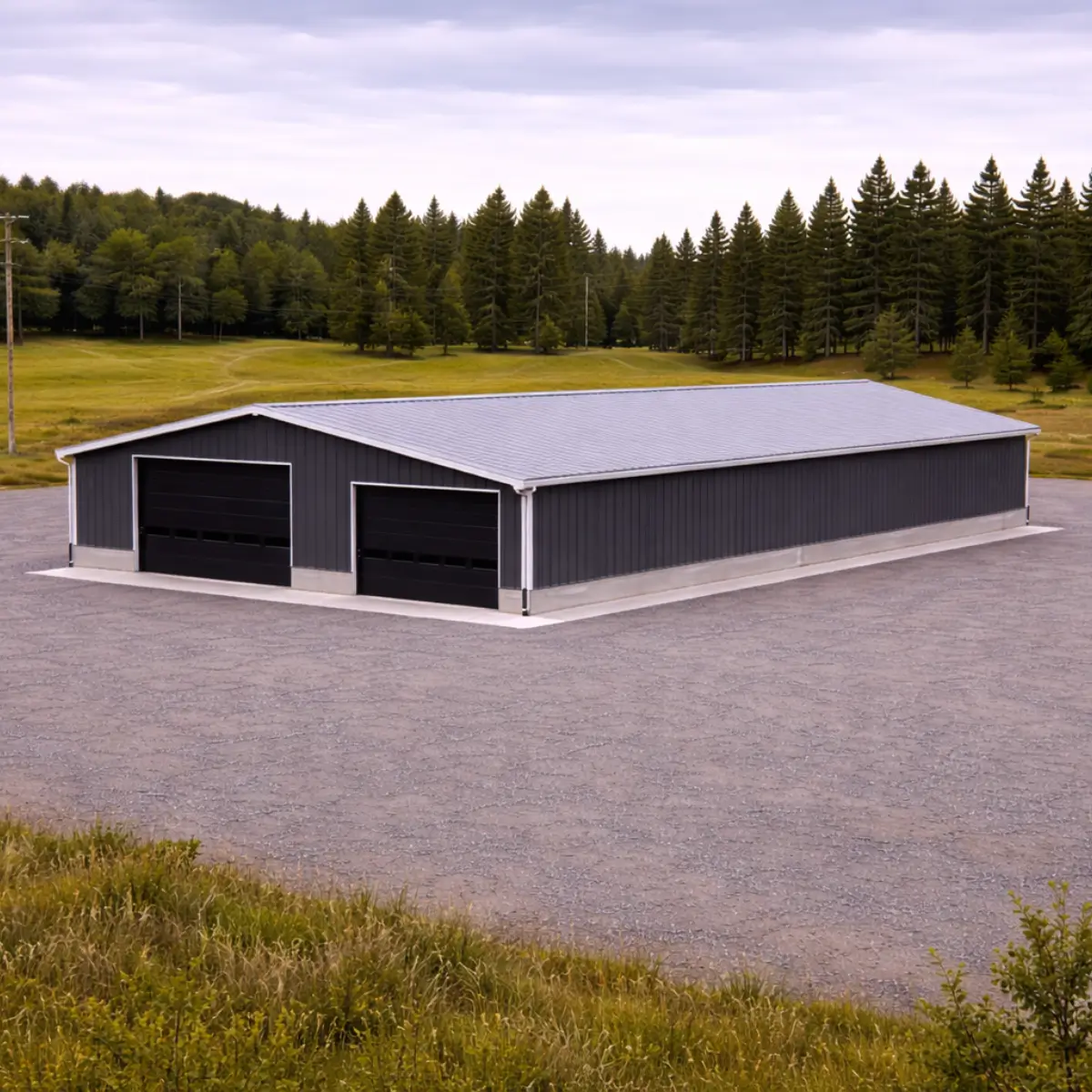

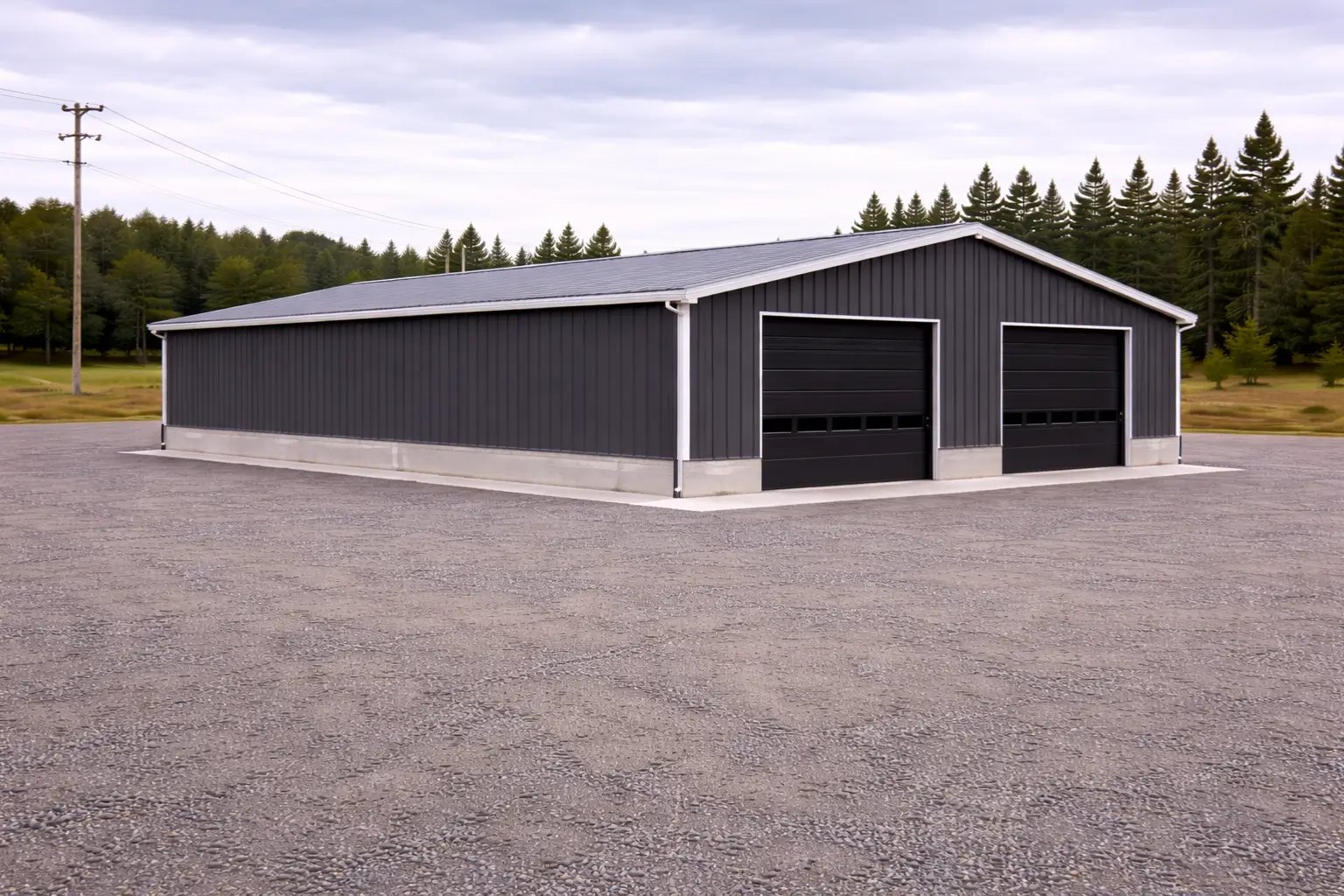

Door Openings and Equipment Access

Clear opening height for doors will always be less than nominal wall height due to structural header depth, door track configuration, roof slope, and framing clearance.

Door openings must be coordinated with structural drawings to ensure proper vehicle access and operational clearance.

Vehicle height and equipment dimensions should be confirmed during planning.



Interior Clearance Planning

Available interior clearance may be reduced by:

Roof purlin depth
Lighting installations
Insulation systems
Interior liner assemblies
Mechanical systems

These factors should be considered when planning equipment placement and workspace layout.



Foundation and Slab Planning

Concrete foundations and slabs are not included with this building kit.

Commercial operations may introduce equipment loads, vehicle traffic, or storage systems requiring slab reinforcement designed for intended operational loads.

Foundation systems must be engineered to resist axial compression forces, lateral forces, and overturning reactions generated by structural loading.



Municipal Planning Considerations – Canada

Commercial workshop buildings may require:

Zoning compliance review
Setback verification
Building height confirmation
Driveway and vehicle access planning

Permitting requirements are determined by the authority having jurisdiction within the applicable Canadian municipality.



Environmental and Canadian Performance Context

Steel enclosure systems protect interior operations from precipitation, wind exposure, and seasonal temperature variation typical across Canadian climates.

Interior heating demand is influenced by insulation strategy, door operation frequency, and interior air volume.

Environmental loading requirements vary by province and exposure classification and are confirmed during structural engineering configuration.



Operational Suitability Matrix

Choose this size if:

You require flexible commercial workspace
Vehicle servicing and storage must be combined
Moderate vertical clearance is sufficient
Operational workflow requires organized interior zones

Consider a taller configuration if:

Large equipment requires increased vertical clearance
Industrial-scale operations are planned

Consider a wider structure if:

Multiple equipment servicing areas are required
High vehicle throughput is expected



Delivered Package Contents

Primary rigid structural frames
Secondary framing components
Steel roof panels
Steel wall panels
Mechanical fastening systems
Structural documentation package

Supplied as packaged structural materials.



Freight Delivery

This product consists of prefabricated steel building materials shipped by freight within Canada. Unloading and site staging are arranged by the buyer. No constructed building is included.



Assembly Requirements

Building erection is performed by the buyer’s selected contractor.

Temporary bracing, structural alignment verification, bolt torque control, and installation sequencing must follow supplied structural documentation.



What Is Included

Structural steel framing
Roof and wall panels
Fastening hardware
Structural documentation package



What Is Not Included

Concrete foundation
Installation labour
Overhead doors
Electrical systems
Insulation systems
Interior finishing



Buyer Input Requirements

Installation location
Door size and clearance requirements
Vehicle or equipment height confirmation
Operational equipment loads
Future expansion considerations



Scope and Responsibility

This product consists of prefabricated structural building materials only. No site-specific engineering services are included beyond the supplied structural documentation package. Building performance depends on proper foundation design, anchorage, erection procedures, and compliance with supplied structural drawings. Ownership transfers at shipment.
