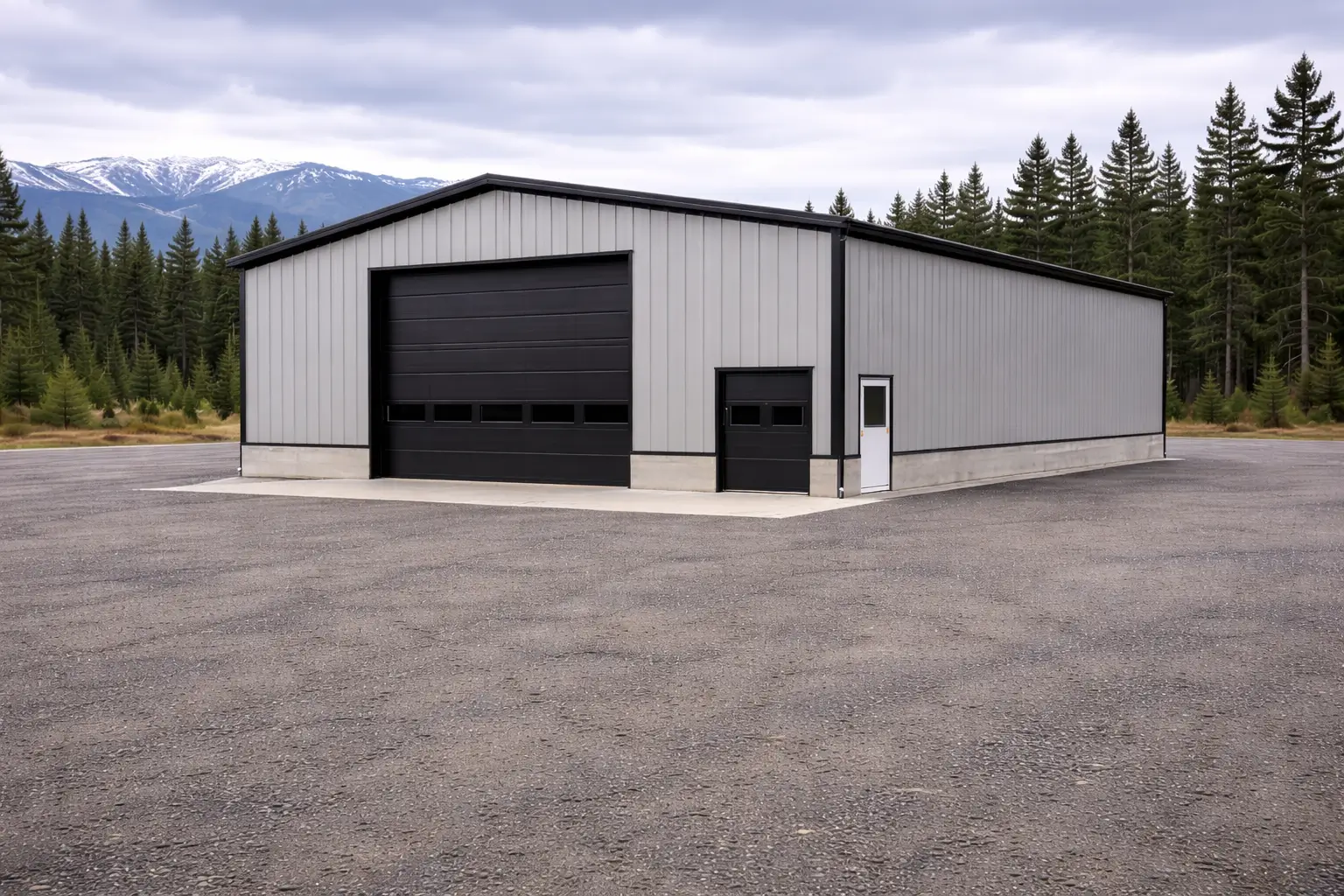

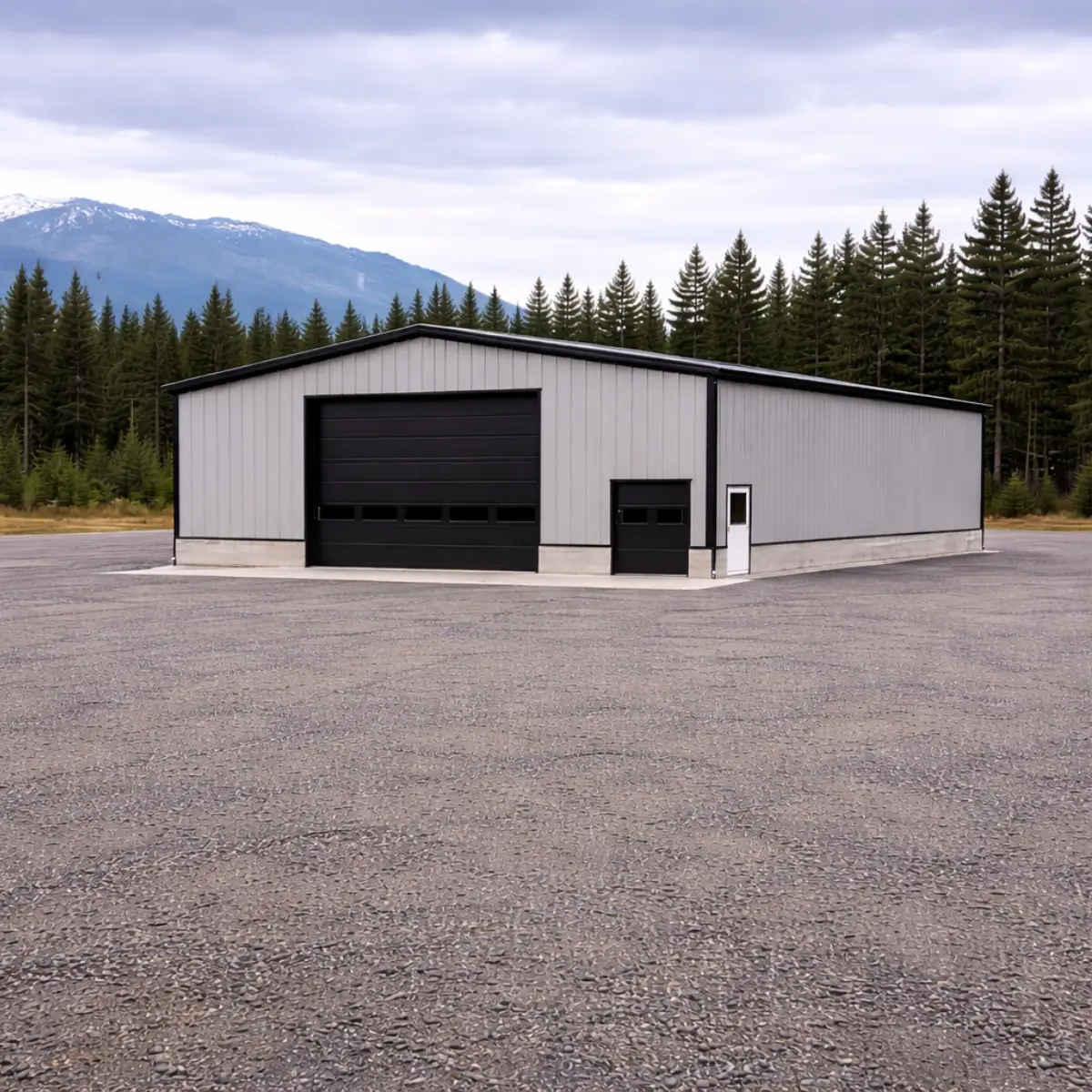

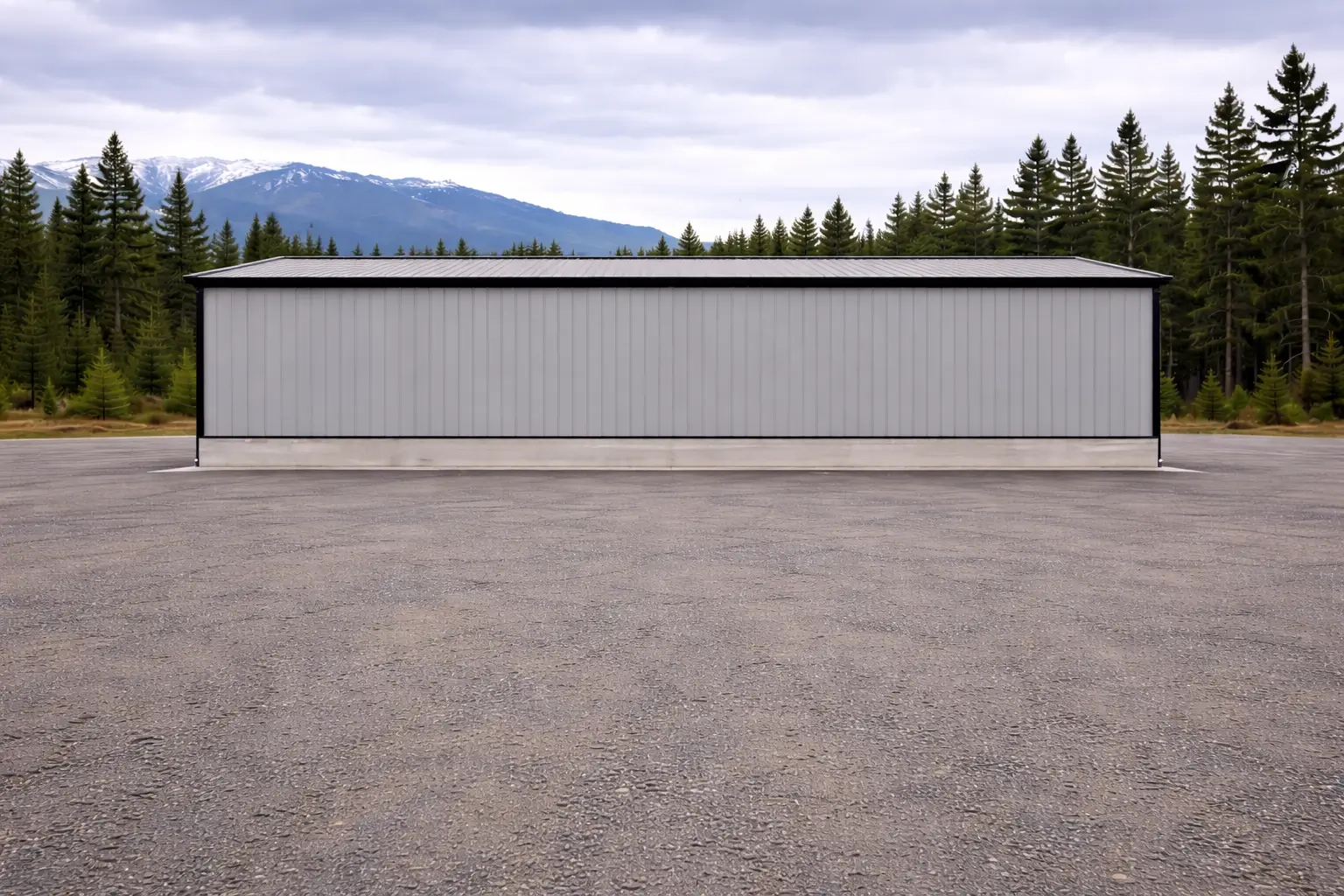

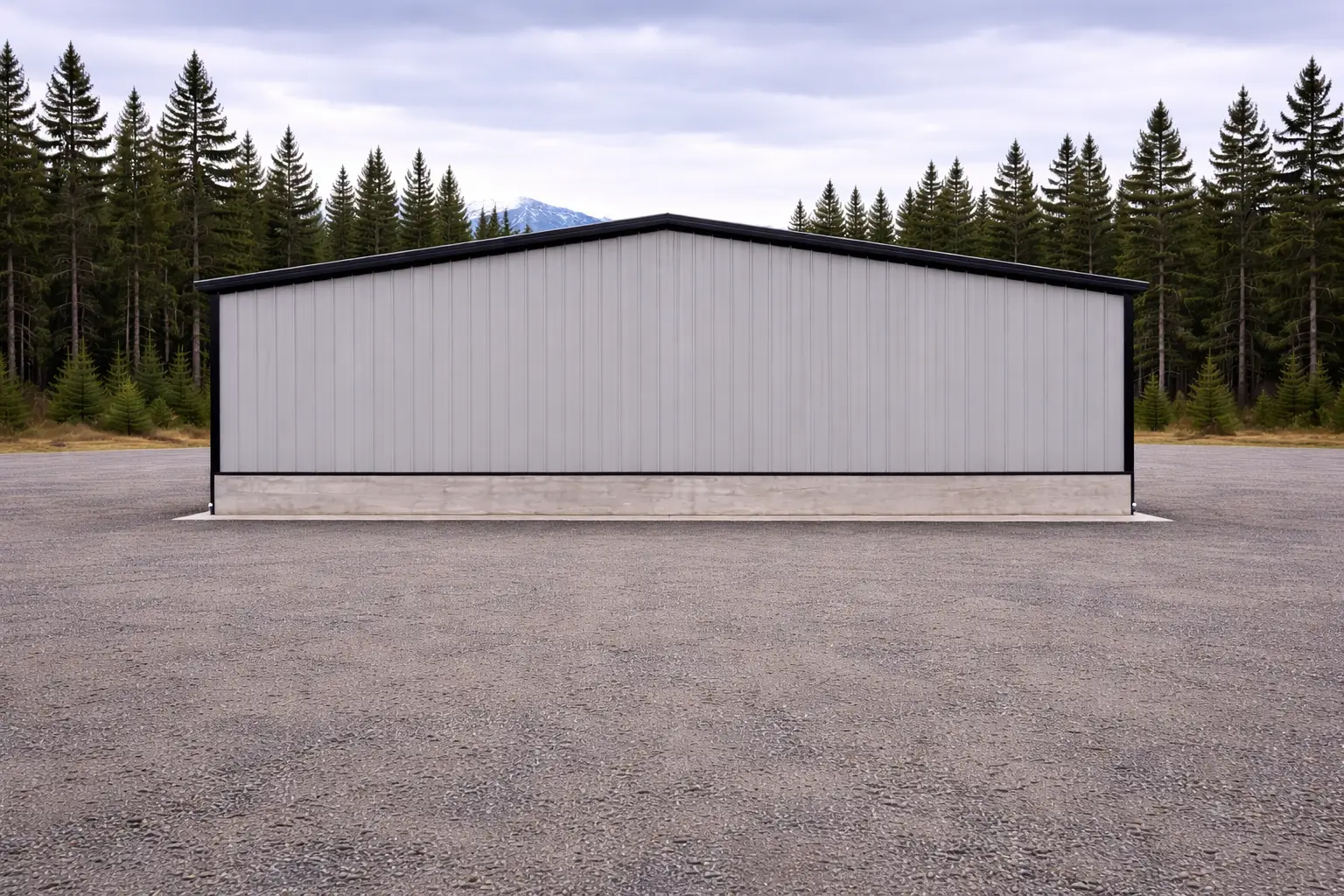

40×50×20 Industrial Fabrication Workshop

Designed for Canadian fabrication and manufacturing operations requiring elevated interior clearance and unobstructed workspace for industrial production environments.

The 40 ft clear span supports equipment layout flexibility, while the 50 ft building length allows separation between fabrication processes, assembly areas, and materials staging.

The 20 ft wall height provides expanded vertical capacity for industrial machinery, fabrication equipment, and overhead mechanical systems.

This configuration supports industrial fabrication environments where vertical clearance and uninterrupted workspace are essential.



Operational Scale Classification

This configuration is classified within the 40 ft width fabrication workshop category.

It is commonly selected for:

Metal fabrication operations
Welding shops
Light manufacturing facilities
Equipment assembly operations
Industrial production environments

Unlike service workshops focused on vehicle maintenance, this configuration supports fabrication processes requiring dedicated equipment space, material handling zones, and production workflow.



Fabrication Workflow Layout Model

Typical interior planning may include:

Raw material staging zone
Primary fabrication workspace
Assembly or finishing area
Rear materials storage or shipping preparation

For example, steel fabrication equipment positioned within the central workspace can operate while maintaining clear zones for raw material handling and finished component staging.

Equipment positioning and workflow depend on door placement, machinery layout, and internal workspace configuration.

The 40 ft clear span allows uninterrupted equipment placement while maintaining circulation space along both sidewalls.



Technical Specifications

Building Width: 40 ft
Building Length: 50 ft
Wall Height at Eave: 20 ft
Interior Area: 2,000 sq ft

Clear Span: 40 ft rigid structural frame
Structural System: Clear-span rigid-frame PEMB configuration
Roof Type: Gable
Peak Height: Varies depending on roof pitch



Interior Volume Capacity

Approximate enclosed volume: 40,000 cubic feet before interior installations.

The increased vertical envelope supports fabrication equipment, material handling systems, and overhead mechanical installations.

Expanded interior height allows installation of taller equipment systems and vertical material storage solutions within fabrication environments.



Structural Behaviour and Load Path

Vertical gravity loads and lateral wind forces transfer through rigid structural rafters into frame columns and then through base plate assemblies into foundation bearing zones.

Structural reactions include axial compression forces, lateral shear forces, and overturning moment effects generated by wind and roof loads.

The rigid-frame clear-span system eliminates interior columns, allowing uninterrupted fabrication workspace and flexible equipment layout.

Rigid frame base reactions produce concentrated structural loads at column locations which must be transferred into reinforced concrete foundation systems designed for project-specific loading conditions.

The increased wall height increases tributary wind area and overturning demand compared with lower workshop structures, influencing column sizing and anchor tension requirements during structural engineering configuration.



Structural Configuration Variability

Final structural member sizes, frame spacing, and connection detailing vary based on:

Installation location
Exposure classification
Door opening configuration
Applicable Canadian building code loading requirements

Frame spacing and connection detailing are finalized during structural engineering configuration to balance structural efficiency and environmental loading demands.



Functional Impact of 20 ft Wall Height

The 20 ft eave height supports:

Fabrication machinery installations
Industrial welding operations
Material handling systems
Overhead ventilation systems
Suspended utilities and lighting

Increased vertical clearance allows safe operation of fabrication equipment and improved workspace separation between machinery and overhead building systems.

This height classification supports industrial fabrication operations that require additional vertical working space compared with standard commercial workshops.



Door Openings and Equipment Access

Clear opening height for doors will always be less than nominal wall height due to structural header depth, door track configuration, roof slope, and framing clearance.

Door openings must be coordinated with structural drawings to ensure proper equipment access and operational workflow.

Machinery height and material handling clearance should be confirmed during planning.



Interior Clearance Planning

Available interior clearance may be reduced by:

Roof purlin depth
Lighting installations
Insulation systems
Interior liner assemblies
Mechanical systems

These factors should be considered when planning fabrication equipment layout and overhead installations.



Foundation and Slab Planning

Concrete foundations and slabs are not included with this building kit.

Fabrication workshops often include heavy equipment loads, machinery anchors, and material handling equipment requiring reinforced slab design.

Foundation systems must be engineered to resist axial compression forces, lateral forces, and overturning reactions generated by structural loading.



Municipal Planning Considerations – Canada

Fabrication workshop buildings may require:

Industrial zoning compliance
Setback verification
Noise and industrial use approval
Driveway and heavy equipment access planning

Permitting requirements are determined by the authority having jurisdiction within the applicable Canadian municipality.



Environmental and Canadian Performance Context

Steel enclosure systems protect interior operations from precipitation, wind exposure, and seasonal temperature variation typical across Canadian climates.

Interior heating demand is influenced by insulation strategy, door operation frequency, and interior air volume.

Environmental loading requirements vary by province and exposure classification and are confirmed during structural engineering configuration.



Operational Suitability Matrix

Choose this size if:

Fabrication or welding operations are planned
Industrial equipment requires increased vertical clearance
Material handling systems require unobstructed interior space
Manufacturing or assembly operations are performed

Consider a wider building if:

Large production equipment requires additional workspace width

Consider a longer building if:

Multiple fabrication lines or production zones are required



Delivered Package Contents

Primary rigid structural frames
Secondary framing components
Steel roof panels
Steel wall panels
Mechanical fastening systems
Structural documentation package

Supplied as packaged structural materials.



Freight Delivery

This product consists of prefabricated steel building materials shipped by freight within Canada. Unloading and site staging are arranged by the buyer. No constructed building is included.



Assembly Requirements

Building erection is performed by the buyer’s selected contractor.

Temporary bracing, structural alignment verification, bolt torque control, and installation sequencing must follow supplied structural documentation.



What Is Included

Structural steel framing
Roof and wall panels
Fastening hardware
Structural documentation package



What Is Not Included

Concrete foundation
Installation labour
Overhead doors
Electrical systems
Insulation systems
Interior finishing



Buyer Input Requirements

Installation location
Door size and clearance requirements
Equipment height confirmation
Operational equipment loads
Future expansion considerations



Scope and Responsibility

This product consists of prefabricated structural building materials only. No site-specific engineering services are included beyond the supplied structural documentation package. Building performance depends on proper foundation design, anchorage, erection procedures, and compliance with supplied structural drawings. Ownership transfers at shipment.
