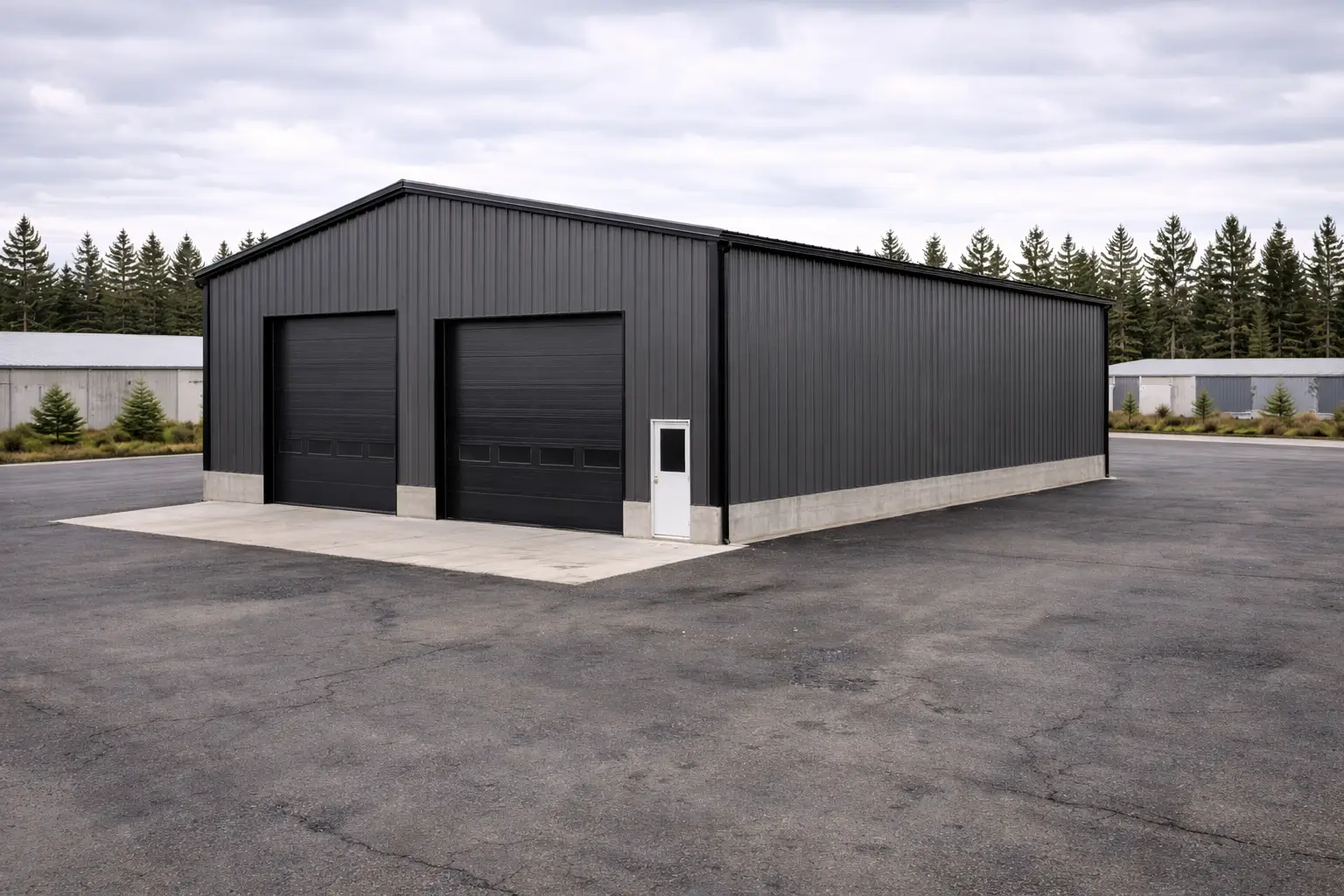

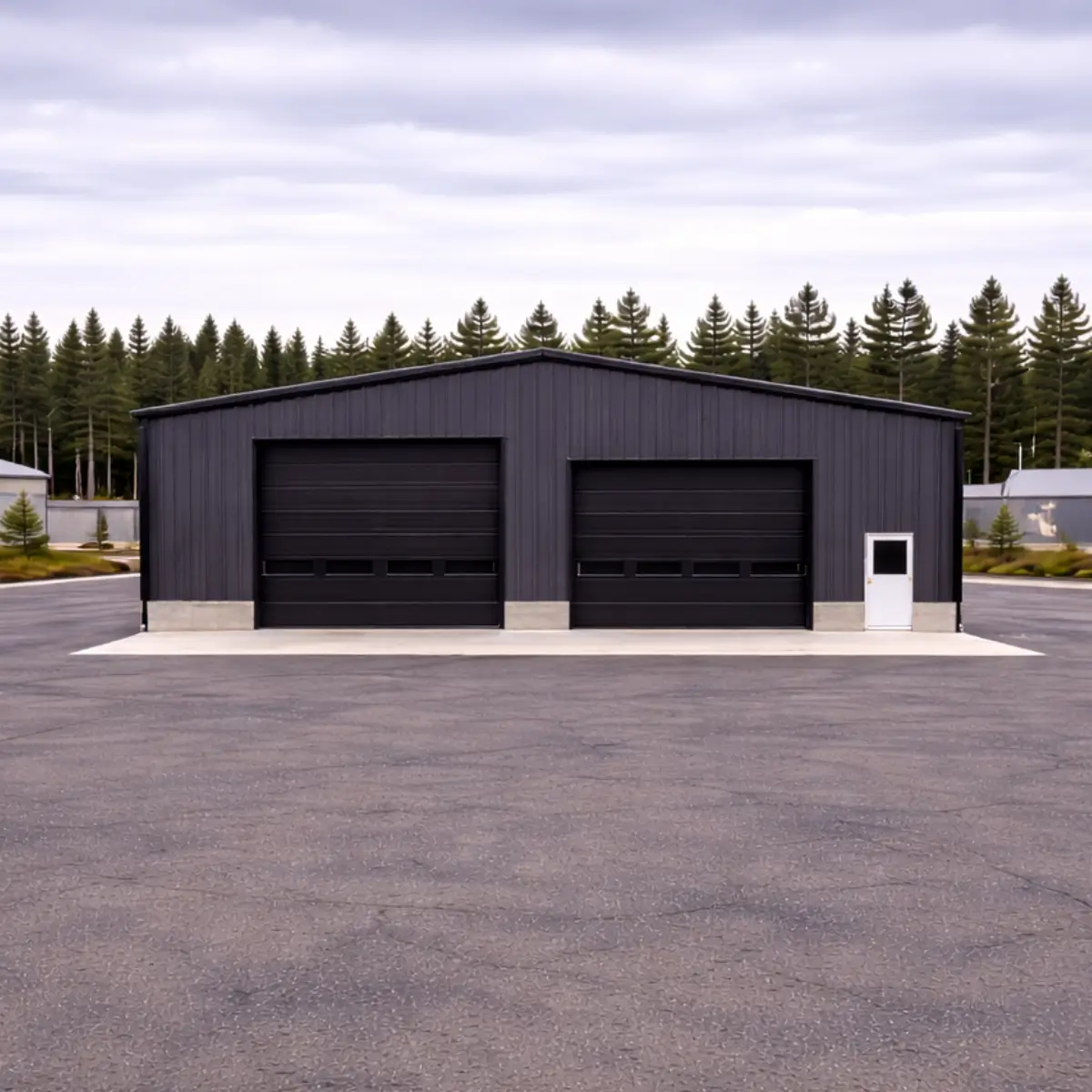

40x50x18 High Clearance Service Workshop

Designed for Canadian vehicle service and equipment maintenance operations requiring expanded vertical clearance within a wide clear-span workspace.

The 40 ft clear span provides sufficient maneuvering space for service vehicles and maintenance equipment, while the 50 ft building length supports defined service workflow between entry, repair activity, and equipment staging areas.

The 18 ft wall height increases interior working clearance, allowing servicing of taller commercial vehicles and equipment while accommodating overhead utilities, lighting systems, and mechanical installations.

This configuration supports high-clearance service environments where both equipment height and unobstructed workspace are essential.



Operational Scale Classification

This configuration is classified within the 40 ft width service workshop category.

It is commonly selected for:

Fleet vehicle maintenance
Commercial truck servicing
Heavy equipment servicing
Mechanical repair operations
Municipal maintenance facilities

The wider structural span allows larger vehicles to be positioned and serviced while maintaining circulation space for technicians, tools, and service equipment.

The 50 ft building length supports separation between vehicle entry zones, service activity areas, and rear staging or storage space.



Service Workflow Layout Model

Typical interior planning may include:

Vehicle entry and positioning zone
Primary service workspace
Maintenance equipment staging area
Rear storage or tool staging zone

For example, service trucks or equipment positioned within the primary work zone can be serviced while maintaining rear staging areas for tools, parts storage, or additional equipment.

Vehicle positioning and workflow depend on door placement, equipment layout, and interior workspace configuration.

The 40 ft clear span allows unobstructed vehicle positioning while preserving circulation space along both sidewalls.



Technical Specifications

Building Width: 40 ft
Building Length: 50 ft
Wall Height at Eave: 18 ft
Interior Area: 2,000 sq ft

Clear Span: 40 ft rigid structural frame
Structural System: Clear-span rigid-frame PEMB configuration
Roof Type: Gable
Peak Height: Varies depending on roof pitch



Interior Volume Capacity

Approximate enclosed volume: 36,000 cubic feet before interior installations.

The expanded vertical envelope increases workspace clearance for commercial vehicles, equipment lifts, and overhead mechanical systems.

The additional interior height also allows installation of elevated storage racks or suspended utilities without interfering with vehicle servicing operations.



Structural Behaviour and Load Path

Vertical gravity loads and lateral wind forces transfer through rigid structural rafters into frame columns and then through base plate assemblies into foundation bearing zones.

Structural reactions include axial compression forces, lateral shear forces, and overturning moment effects generated by wind and roof loads.

The rigid-frame clear-span system eliminates interior columns, enabling unobstructed service space for vehicle positioning and equipment movement.

Rigid frame base reactions produce concentrated structural loads at column locations that must be transferred into reinforced concrete foundation systems designed for project-specific loading conditions.

The increased wall height increases tributary wind area and overturning demand compared with lower workshop structures, influencing column sizing and anchor tension requirements during structural engineering configuration.



Structural Configuration Variability

Final structural member sizes, frame spacing, and connection detailing vary based on:

Installation location
Exposure classification
Door opening configuration
Applicable Canadian building code loading requirements

Frame spacing and connection detailing are finalized during structural engineering configuration to balance structural efficiency and environmental loading demands.



Functional Impact of 18 ft Wall Height

The 18 ft eave height supports:

Commercial vehicle servicing
Maintenance equipment installations
Vehicle lift systems
Overhead utilities and ventilation systems
Elevated storage systems

Expanded vertical clearance allows servicing of taller service vehicles while maintaining safe working space for overhead mechanical systems.

The additional height also allows installation of maintenance equipment or lighting systems above the primary work area.



Door Openings and Vehicle Access

Clear opening height for doors will always be less than nominal wall height due to structural header depth, door track configuration, roof slope, and framing clearance.

Door openings must be coordinated with structural drawings to ensure adequate clearance for vehicles and service equipment.

Vehicle height and service access requirements should be verified before door selection.



Interior Clearance Planning

Available interior clearance may be reduced by:

Roof purlin depth
Lighting installations
Insulation systems
Interior liner assemblies
Mechanical systems

These factors should be considered when planning vehicle lifts, equipment positioning, and overhead installations.



Foundation and Slab Planning

Concrete foundations and slabs are not included with this building kit.

Service workshop operations may introduce vehicle loads, maintenance equipment loads, and concentrated equipment anchoring forces that require reinforced slab design.

Foundation systems must be engineered to resist axial compression forces, lateral forces, and overturning reactions generated by structural loading.



Municipal Planning Considerations – Canada

Service workshop buildings may require:

Commercial or industrial zoning confirmation
Setback compliance review
Vehicle access planning
Service yard circulation planning

Permitting requirements are determined by the authority having jurisdiction within the applicable Canadian municipality.



Environmental and Canadian Performance Context

Steel enclosure systems protect interior operations from precipitation, wind exposure, and seasonal temperature variation typical across Canadian climates.

Interior heating demand is influenced by insulation strategy, door usage frequency, and interior air volume.

Environmental loading requirements vary by province and exposure classification and are confirmed during structural engineering configuration.



Operational Suitability Matrix

Choose this size if:

Commercial vehicle servicing is required
Maintenance equipment requires increased vertical clearance
Fleet maintenance operations are planned
Heavy equipment servicing is required

Consider a wider building if:

Multiple service work positions are required simultaneously

Consider a taller building if:

Specialized maintenance equipment requires additional vertical clearance



Delivered Package Contents

Primary rigid structural frames
Secondary framing components
Steel roof panels
Steel wall panels
Mechanical fastening systems
Structural documentation package

Supplied as packaged structural materials.



Freight Delivery

This product consists of prefabricated steel building materials shipped by freight within Canada. Unloading and site staging are arranged by the buyer. No constructed building is included.



Assembly Requirements

Building erection is performed by the buyer’s selected contractor.

Temporary bracing, structural alignment verification, bolt torque control, and installation sequencing must follow supplied structural documentation.



What Is Included

Structural steel framing
Roof and wall panels
Fastening hardware
Structural documentation package



What Is Not Included

Concrete foundation
Installation labour
Overhead doors
Electrical systems
Insulation systems
Interior finishing



Buyer Input Requirements

Installation location
Door height and width requirements
Vehicle height confirmation
Equipment layout requirements
Future operational needs



Scope and Responsibility

This product consists of prefabricated structural building materials only. No site-specific engineering services are included beyond the supplied structural documentation package. Building performance depends on proper foundation design, anchorage, erection procedures, and compliance with supplied structural drawings. Ownership transfers at shipment.
