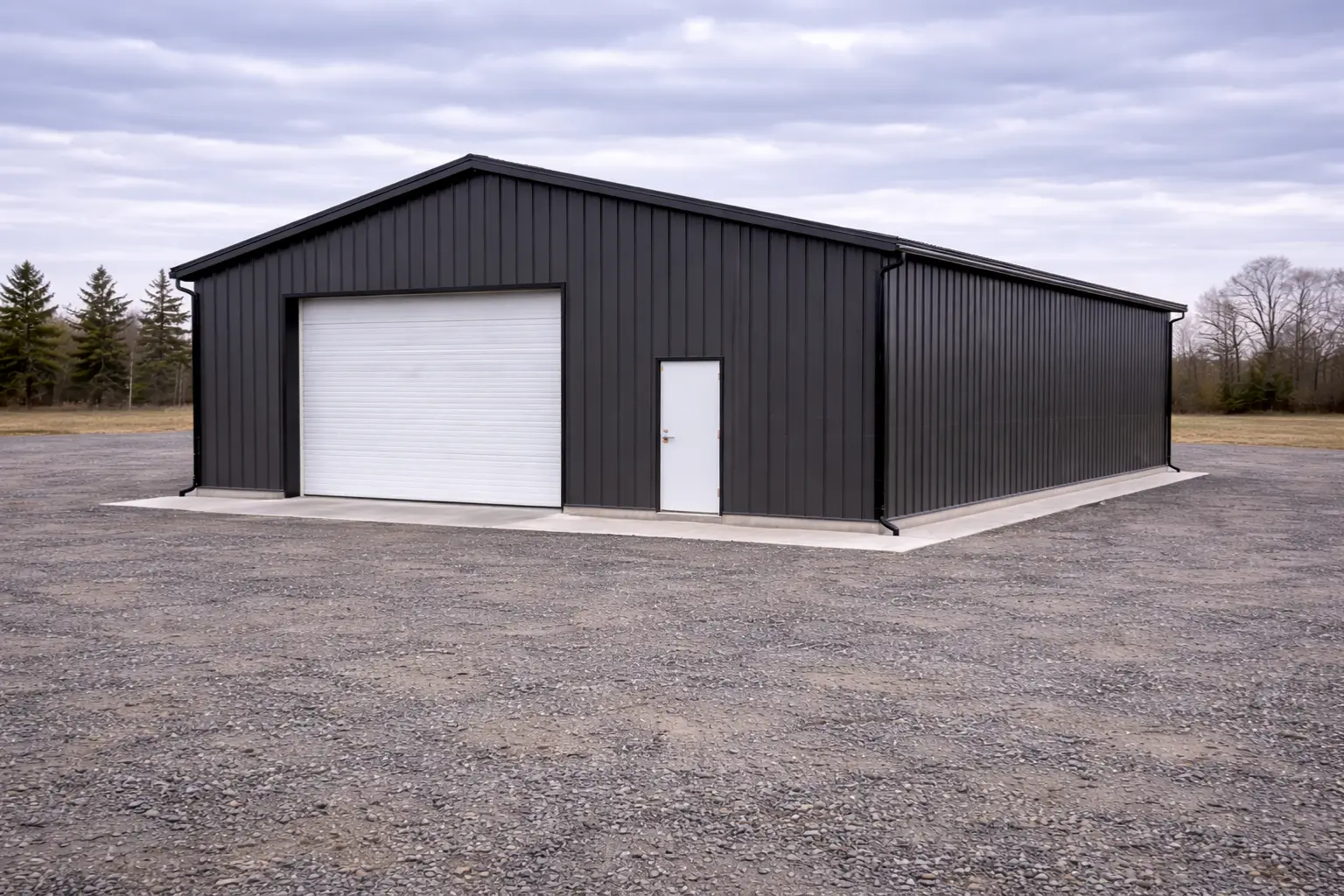

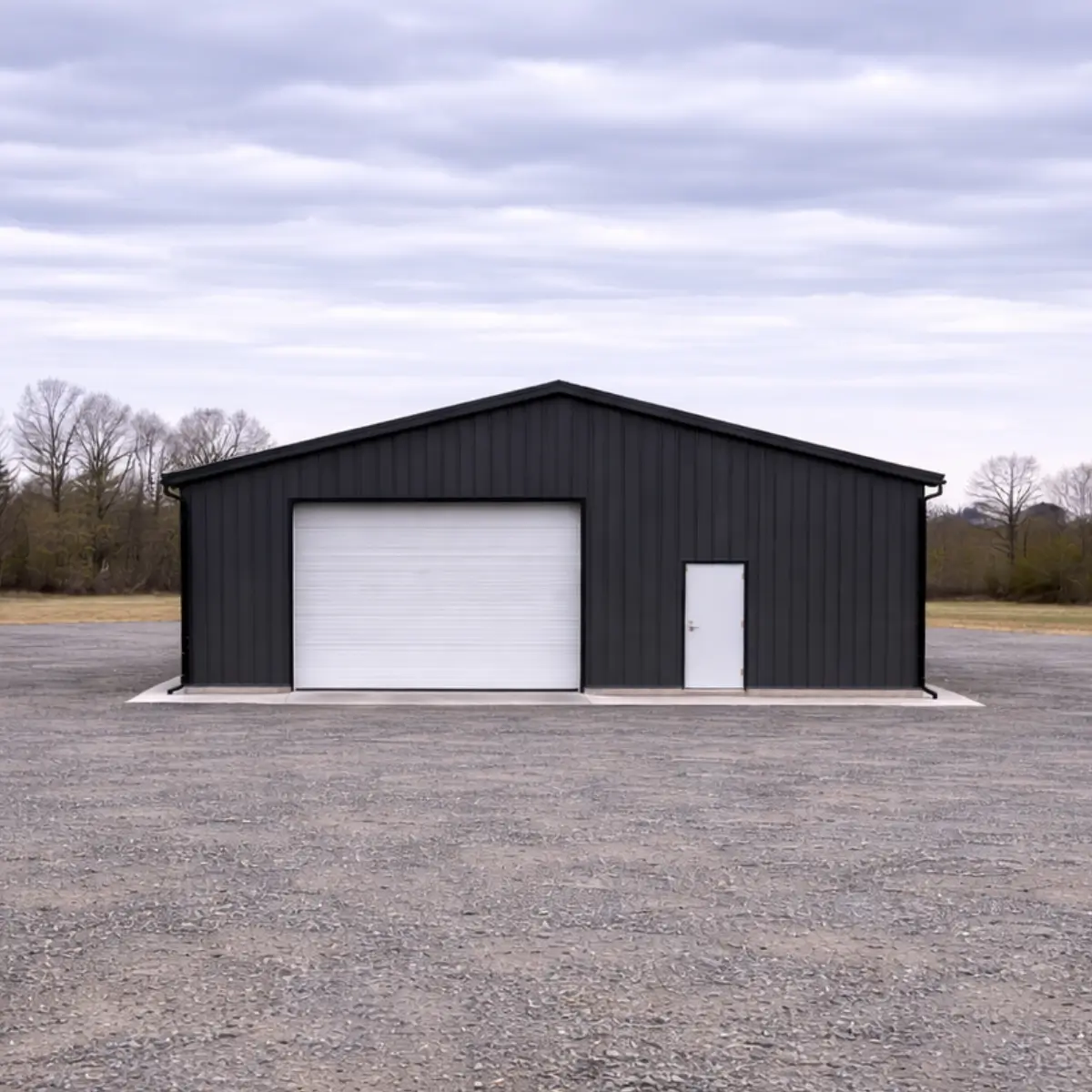

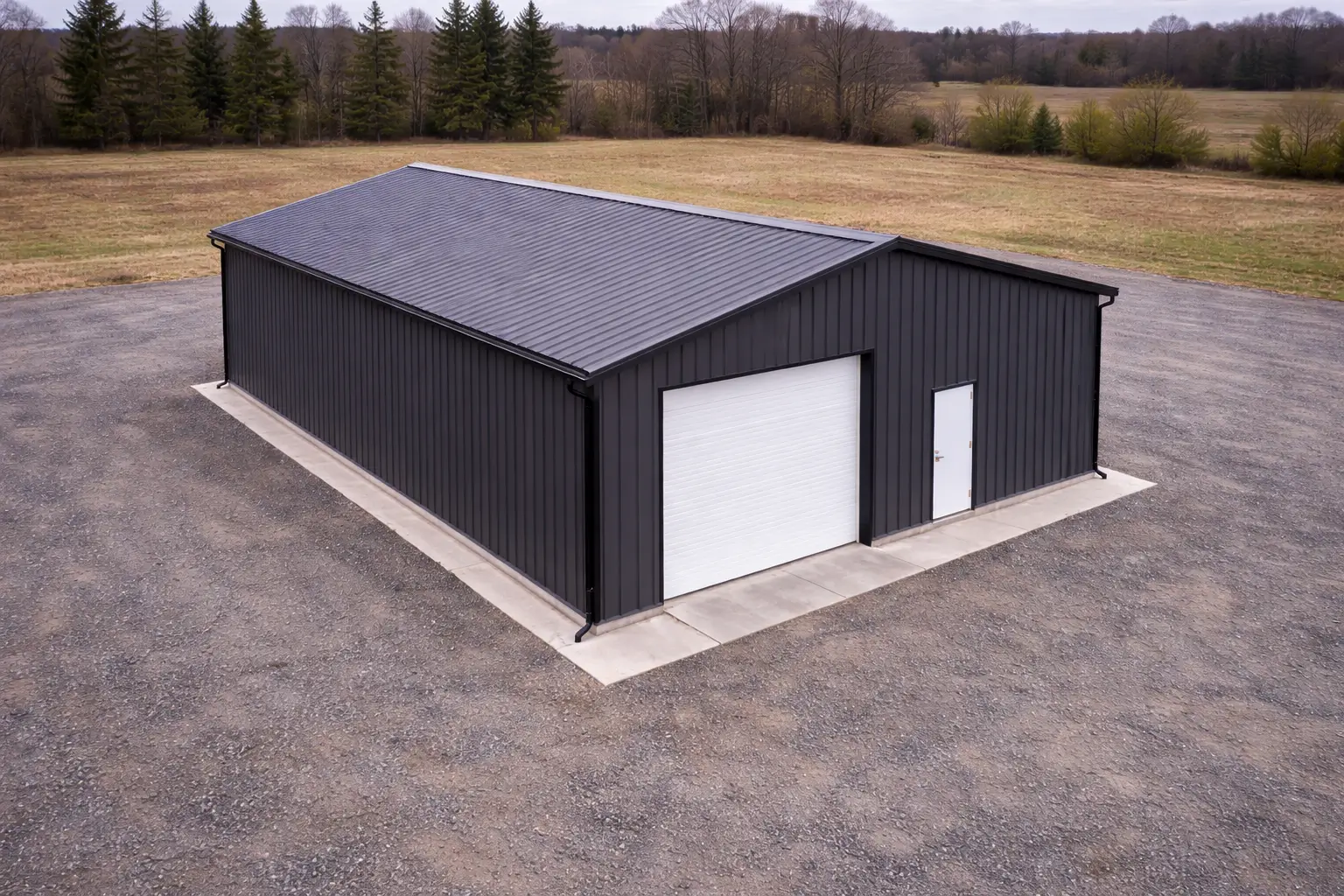

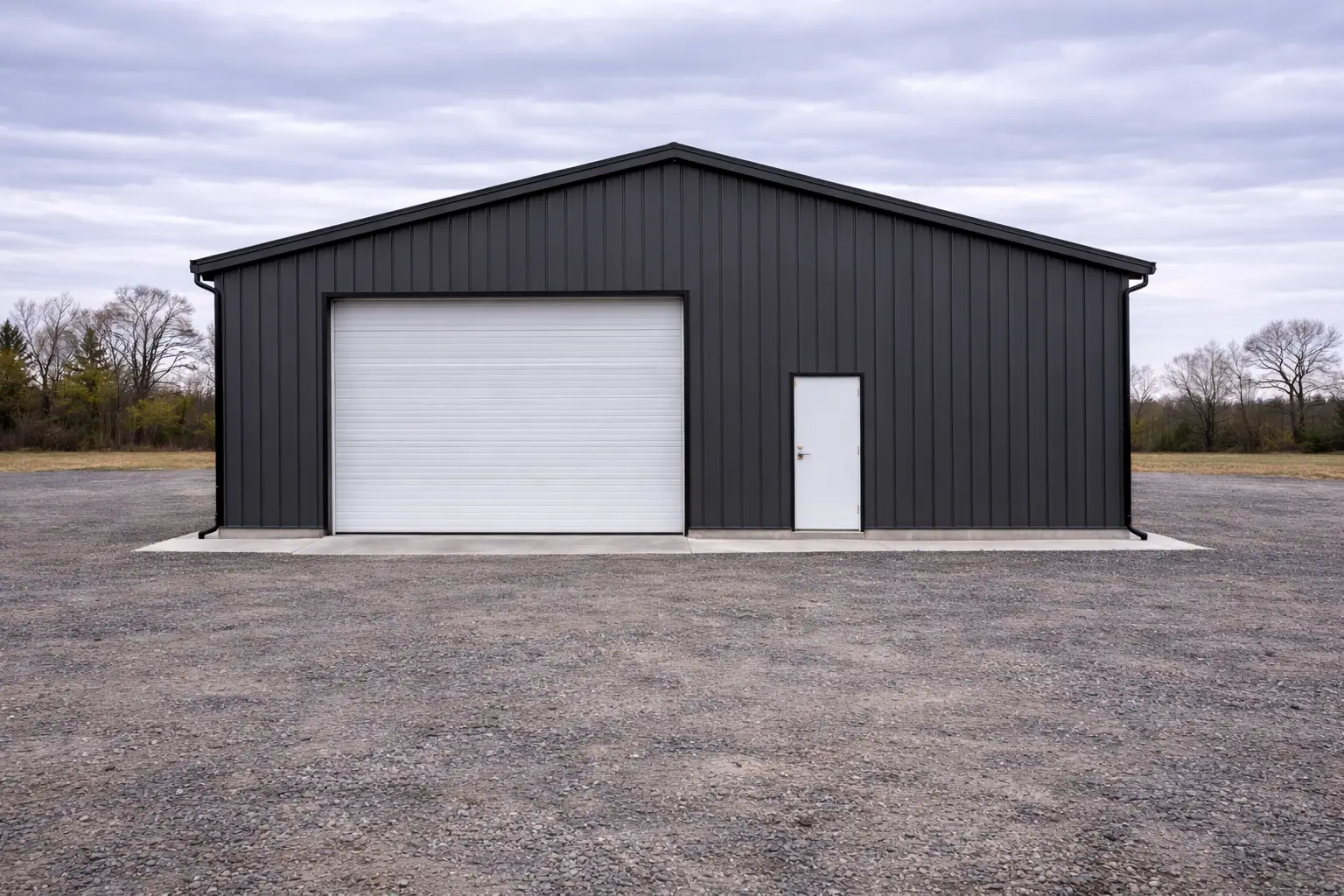

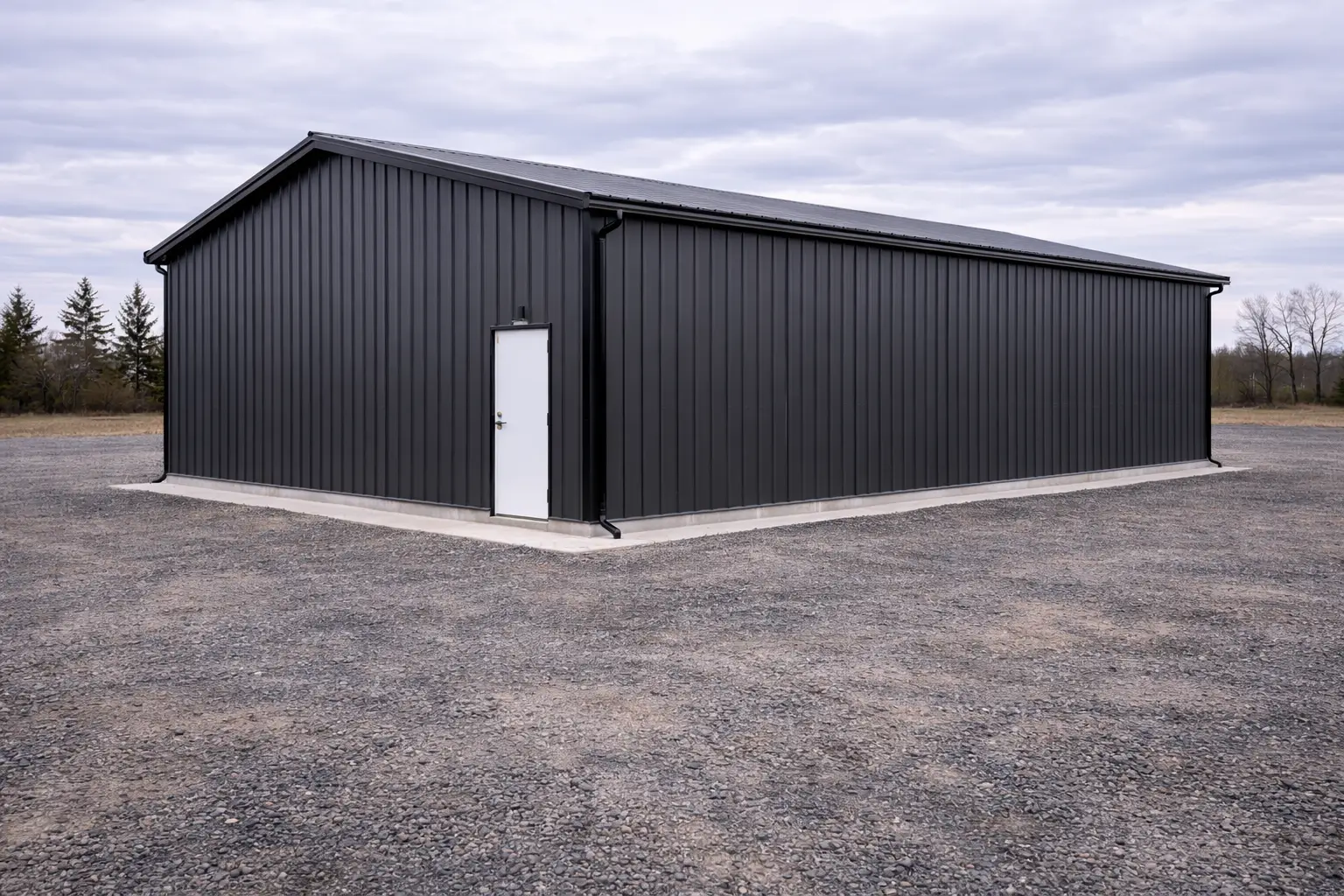

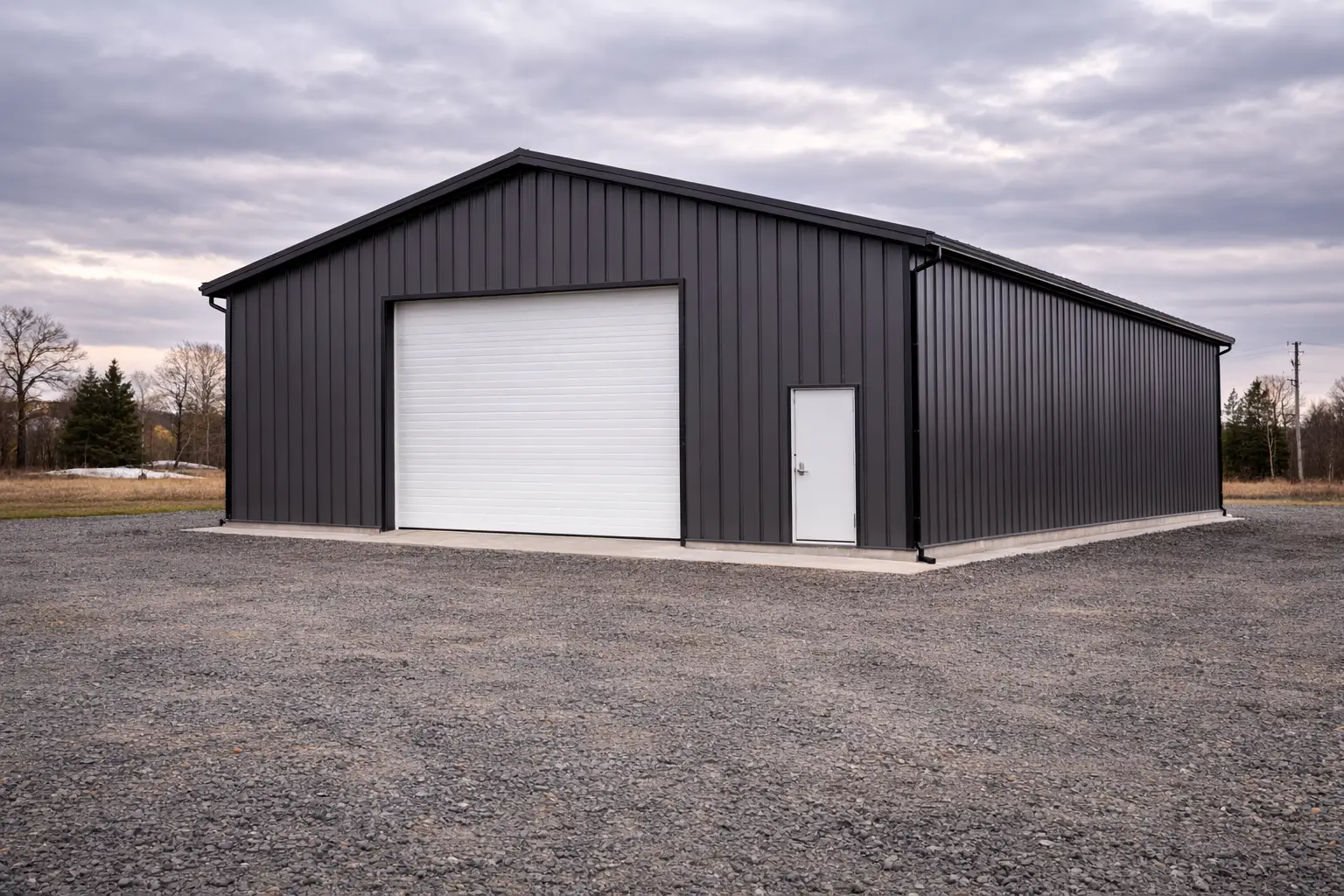

30×50×14 Contractor Steel Workshop Building

Designed for Canadian contractors requiring a practical service workshop environment within a compact 30 ft clear-span operational footprint.

The 14 ft wall height supports service vehicles, tool systems, and contractor equipment while maintaining efficient heating performance and manageable interior volume.

This configuration prioritizes operational efficiency and dependable contractor workspace performance without increasing structural span or vertical envelope.



Operational Scale Classification

This configuration is classified within the 30 ft width contractor workshop category.

It is commonly selected for:

Electrical contractors
Mechanical trades
HVAC technicians
Plumbing contractors
Landscape and equipment service operators

Unlike wider commercial service facilities, the 30 ft span supports controlled contractor-scale vehicle positioning and tool staging rather than high-throughput commercial servicing.

The 30 ft width also allows installation on constrained commercial yards or rural service properties where larger buildings may exceed available site width.

The compact structural footprint simplifies site placement where property width, access lanes, or setback limitations restrict larger workshop structures.



Height Progression Context – 30×50 Series

Within the 30×50 contractor workshop footprint:

30×50×14 → standard contractor service clearance with efficient heating volume

30×50×16 → increased overhead clearance for suspended utilities and taller equipment

The 14 ft configuration emphasizes energy efficiency and practical workspace height rather than expanded vertical infrastructure capacity.



Contractor Workflow Layout Model

Typical interior planning may include:

Vehicle intake and service area at the front
Primary repair or maintenance zone
Sidewall storage for tools and materials
Rear staging area for equipment preparation

For example, a contractor service truck approximately 18–20 ft in length can be positioned within the forward service area while maintaining rear workspace clearance for benches and storage systems depending on door placement and interior layout.

Vehicle positioning and interior workflow depend on door placement, equipment layout, and interior workspace configuration.

The 30 ft clear span allows unobstructed vehicle positioning while preserving circulation space along both sidewalls.



Technical Specifications

Building Width: 30 ft
Building Length: 50 ft
Wall Height at Eave: 14 ft
Interior Area: 1,500 sq ft

Clear Span: 30 ft rigid structural frame
Structural System: Clear-span rigid-frame PEMB configuration
Roof Type: Gable
Peak Height: Varies depending on roof pitch



Interior Volume Capacity

Approximate enclosed volume: 21,000 cubic feet before interior installations.

Compared with taller contractor workshops, the 14 ft configuration maintains a lower interior air volume, improving heating efficiency in colder Canadian climates.

Reduced interior volume can decrease heating demand while still providing adequate clearance for contractor vehicles and equipment.

This balance between interior clearance and heating efficiency makes the 14 ft configuration suitable for smaller contractor operations or seasonal service environments.



Structural Behaviour and Load Path

Vertical gravity loads and lateral wind forces are transferred through rigid structural rafters into frame columns and then through base plate connections into foundation bearing zones.

Structural reactions include axial compression forces, lateral shear forces, and overturning moment effects generated by wind and roof loads.

Although this configuration uses a lower wall height than taller contractor buildings, the structural system is still designed to resist environmental loads typical across Canadian exposure conditions.

Rigid frame base reactions create concentrated load transfer points at column locations, which must be supported by reinforced concrete foundation systems designed for project-specific loading conditions.



Structural Configuration Variability

Final structural member sizes, frame spacing, and connection detailing vary based on:

Installation location
Exposure classification
Door opening configuration
Applicable Canadian building code loading requirements

Frame spacing and connection detailing are finalized during structural engineering configuration to balance structural efficiency and environmental loading demands.



Functional Impact of 14 ft Wall Height

The 14 ft eave height supports:

Contractor service vehicles
Equipment storage systems
Interior lighting installations
Basic overhead utilities

This height is commonly selected where extensive overhead infrastructure or vehicle lifts are not required.

The reduced vertical envelope improves heating performance while maintaining adequate clearance for standard contractor operations.



Door Openings and Equipment Access

Clear opening height for doors will always be less than nominal wall height due to structural header depth, door track configuration, roof slope, and framing clearance.

Door dimensions must be coordinated with structural drawings before procurement to ensure proper vehicle access and equipment clearance.

Service vehicle height and roof-mounted equipment should be confirmed during planning.



Interior Clearance Planning

Available interior clearance may be reduced by:

Roof purlin depth
Lighting installations
Insulation systems
Interior liner assemblies

These factors should be considered when planning storage systems or equipment placement.



Foundation and Slab Planning

Concrete foundations and slabs are not included with this building kit.

Contractor operations may introduce equipment loads, storage systems, or vehicle traffic requiring slab reinforcement designed for intended use.

Foundation systems must be designed to resist axial compression, lateral forces, and overturning reactions generated by the structural frame.



Municipal Planning Considerations – Canada

Contractor workshop buildings may require:

Zoning compliance review
Setback verification
Driveway access confirmation
Building height verification

Permitting requirements are determined by the authority having jurisdiction within the applicable Canadian municipality.



Environmental and Canadian Performance Context

Structural documentation is prepared to reflect Canadian building code loading requirements for snow, wind, and exposure classification based on confirmed installation location.

Steel enclosure systems protect interior operations from precipitation, wind exposure, and seasonal temperature variation typical across Canadian climates.

Interior heating demand is influenced by building insulation, door operation frequency, and interior air volume.

Environmental loading requirements vary by province and exposure classification and are confirmed during structural engineering configuration.



Operational Suitability Matrix

Choose this size if:

You require an efficient contractor service workspace
Standard vehicle service height is sufficient
Energy efficiency and heating performance are priorities
You want a practical 30 ft clear-span workshop

Consider a taller configuration if:

Overhead utilities or air systems require additional height
Vehicle lifts or elevated storage systems are planned

Consider a longer building if:

Repair sequencing must be separated
Multiple vehicle staging areas are required



Delivered Package Contents

Primary rigid structural frames
Secondary framing components
Steel roof panels
Steel wall panels
Mechanical fastening systems
Structural documentation package

Supplied as packaged structural materials.



Freight Delivery

This product consists of prefabricated steel building materials shipped by freight within Canada. Unloading and site staging are arranged by the buyer. No constructed building is included.



Assembly Requirements

Building erection is performed by the buyer’s selected contractor.

Temporary bracing, structural alignment verification, bolt torque control, and installation sequencing must follow supplied structural documentation.



What Is Included

Structural steel framing
Roof and wall panels
Fastening hardware
Structural documentation package



What Is Not Included

Concrete foundation
Installation labour
Overhead doors
Electrical systems
Insulation systems
Interior finishing



Buyer Input Requirements

Installation location
Door size and clearance requirements
Vehicle height confirmation
Operational equipment loads
Future expansion considerations



Scope and Responsibility

This product consists of prefabricated structural building materials only. No site-specific engineering services are included beyond the supplied structural documentation package. Building performance depends on proper foundation design, anchorage, erection procedures, and compliance with supplied structural drawings. Ownership transfers at shipment.
