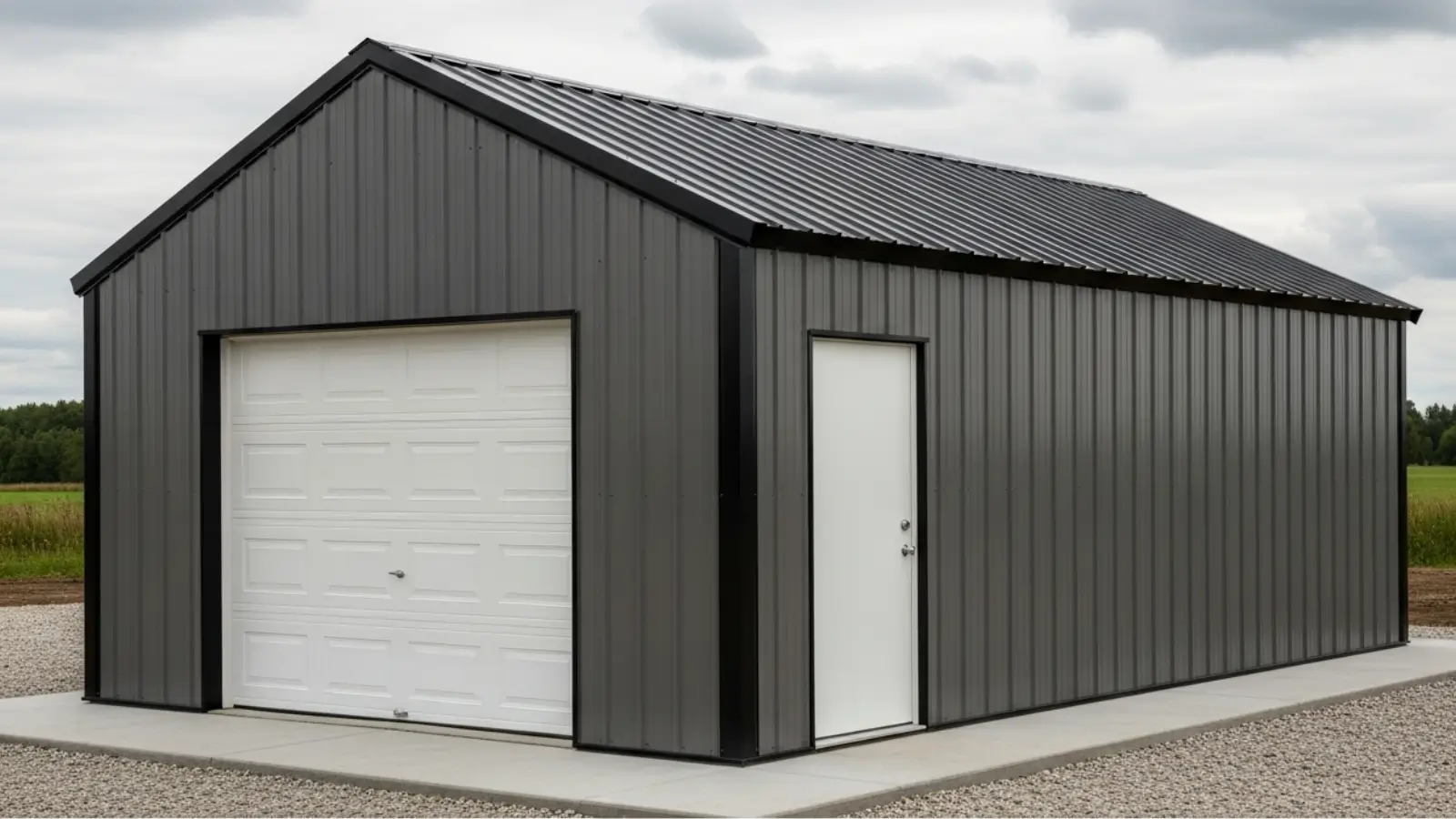

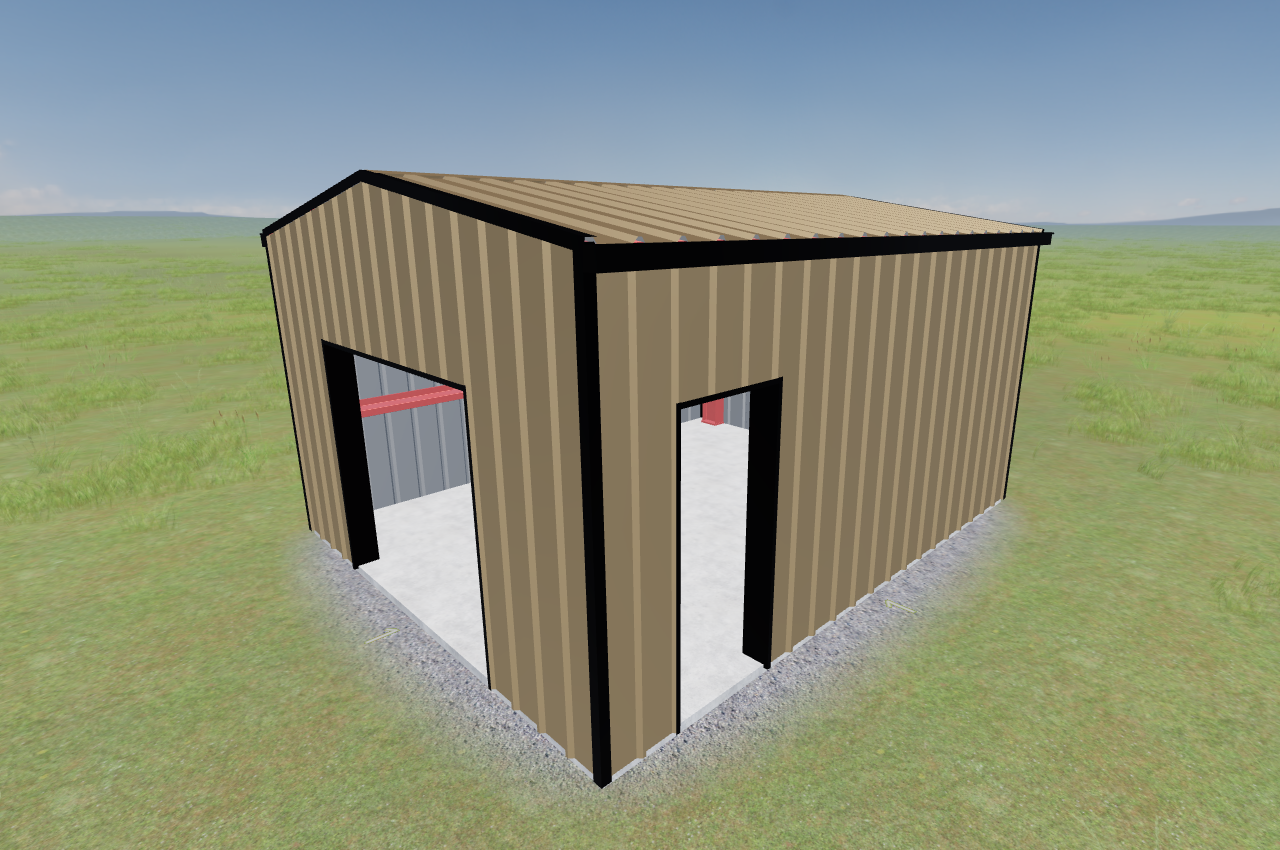

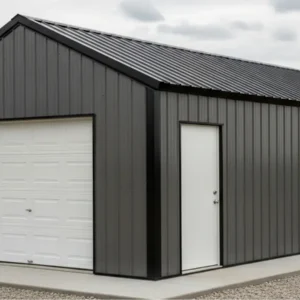

16X20X10 Steel Garage Kit – Prefab Metal Garage for Vehicles

Product Classification

Prefabricated structural steel building kit
Detached accessory garage or storage structure
Pre-Engineered Metal Building (PEMB) system
Physical packaged building materials shipped by freight



Technical Specifications (Quick Reference)

Building Width: 16 ft
Building Length: 20 ft
Wall Height: 10 ft
Interior Area: 320 sq ft

Clear Interior Height at Eave: approx 10 ft
Peak Interior Height: varies by roof pitch (gable configuration)
Roof Pitch: project-specific configuration

Structural System: Rigid-frame portal system
Interior Span: Column-free
Panel System: Profiled steel cladding
Panel Profile Type: Ribbed structural cladding
Connection Method: Bolted structural assembly
Field Assembly: Mechanical fastener installation

Intended Use Category: Enclosed residential vehicle storage structure

Structural Design Basis
Final structural configuration is prepared based on confirmed installation location, environmental loading considerations, and applicable building code requirements.



Product Overview

The 16×20 format is commonly specified when property owners require enclosed single-vehicle protection within a compact structural footprint. This size supports vehicle storage while maintaining minimal site coverage, making it suitable for properties where available space, setbacks, or zoning constraints limit building dimensions.

This configuration is frequently selected when driveway parking requires weather protection but larger garage formats exceed available lot width or accessory structure coverage limits.

As a rigid-frame prefabricated steel garage building kit, the structure provides enclosed vehicle protection within a single uninterrupted interior span while maintaining efficient land use.

This compact prefab metal garage building is commonly selected as a detached garage, backyard vehicle enclosure, or small residential accessory structure for Canadian properties requiring minimal footprint construction.

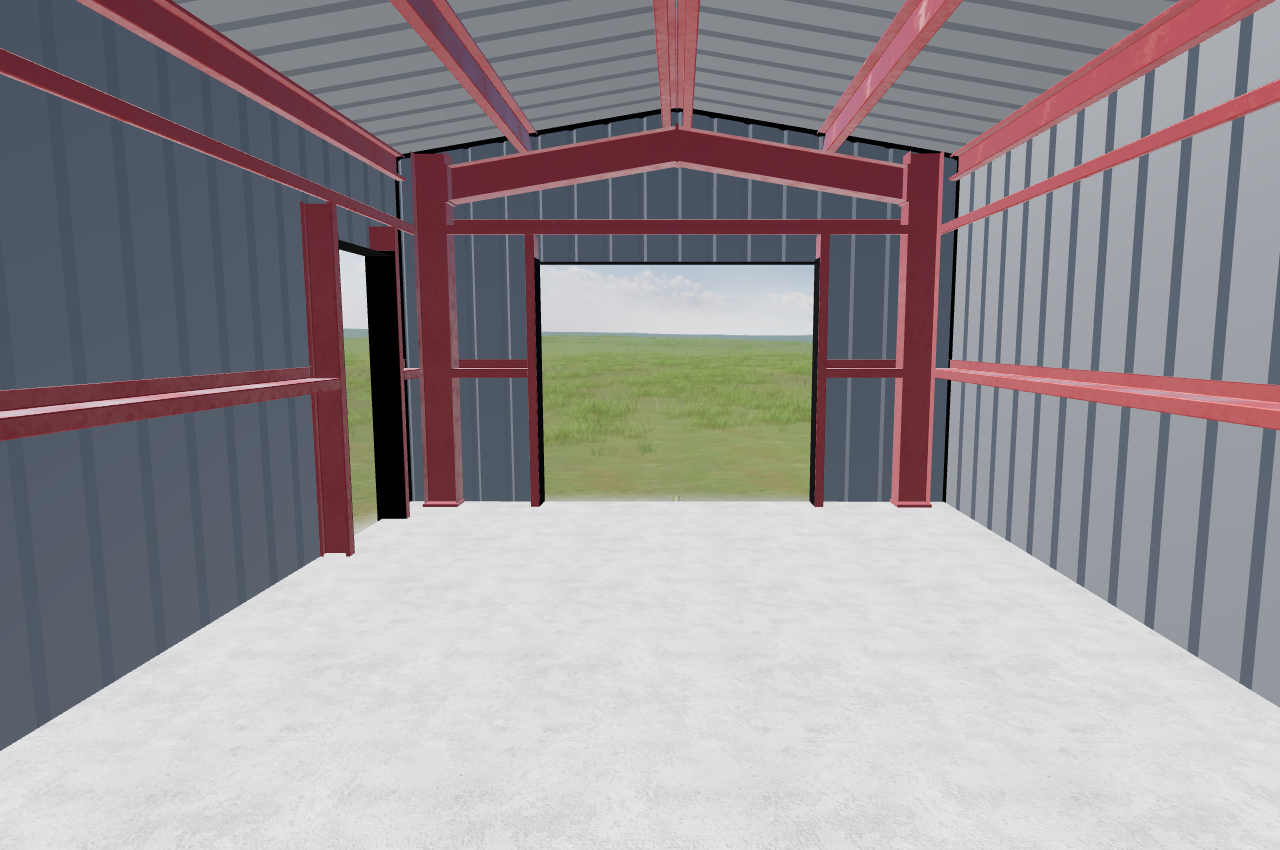

Structural System Classification

Pre-Engineered Metal Building (PEMB)
Rigid-frame portal structural system
Clear-span primary structural frame

Rigid frame geometry transfers roof and lateral loads through structural columns into foundation bearing points. Span-to-height proportions are configured to provide enclosed volume efficiency suitable for compact accessory building applications.

Portal frame action develops moment resistance at column-rafter connections, allowing enclosed structure performance without intermediate interior supports.

The structural system is commonly used for compact garages and small detached storage buildings.

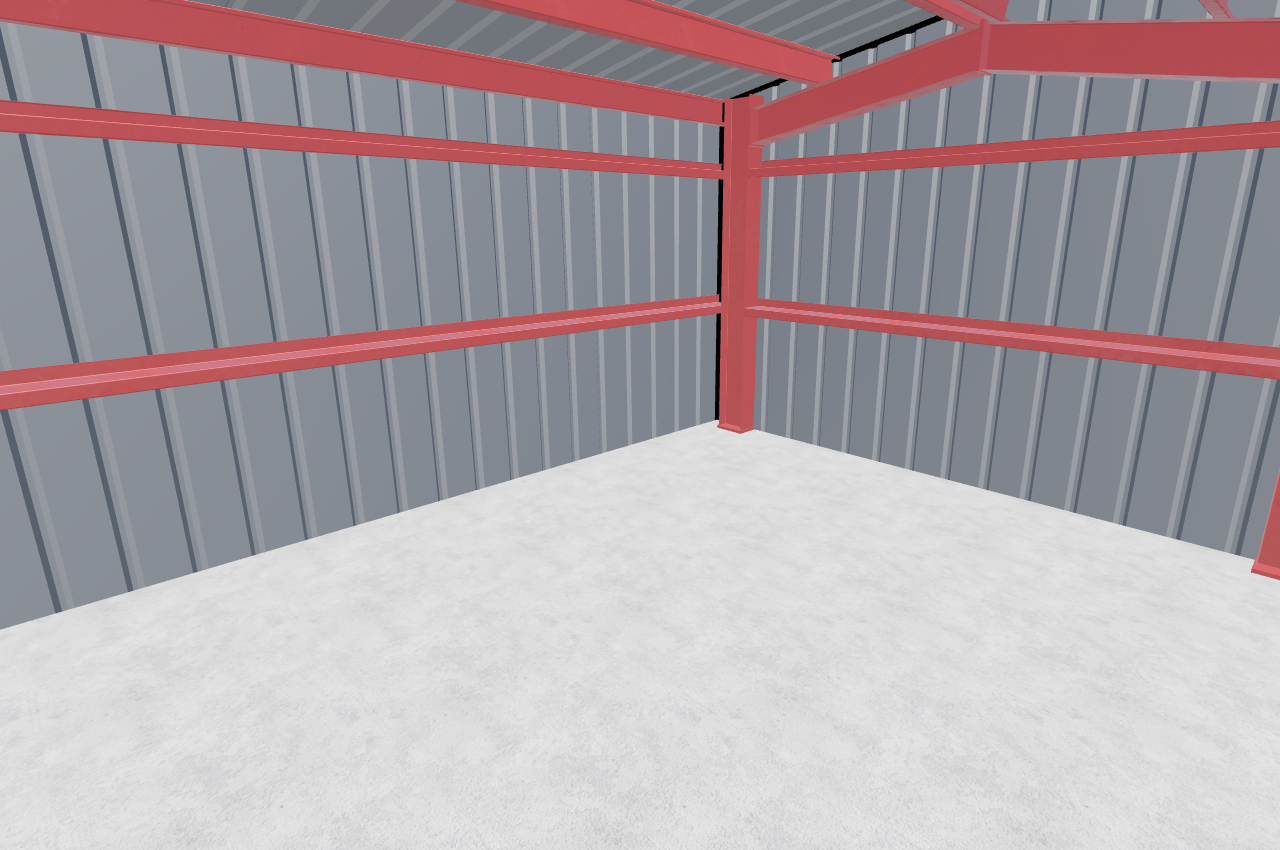

Structural Components & Materials

Primary structural framing fabricated from structural steel members with prefabricated connection plates for bolted field assembly.

Exterior cladding formed from profiled steel panels attached to secondary framing members using mechanical fastener systems.

Secondary framing members transfer enclosure loads to primary structural frames while maintaining building envelope stiffness and panel support alignment.

Steel panel systems incorporate protective coating finishes suitable for exterior building envelope applications.

Primary rigid frames are spaced according to structural design requirements determined at time of order to align with applicable building code criteria.

Structural loads are transferred through rigid frame columns to foundation bearing points. Foundation design must support vertical and lateral loads accordingly.

Rigid frame column reactions create concentrated loads at foundation bearing locations. Foundation design must account for base plate load transfer.

Primary rigid frames are designed to resist bending moments at column-rafter connections characteristic of portal frame geometry.

Foundation design, slab specifications, and interior load considerations are determined separately by the project team based on intended operational requirements.



Structural Load Determination Process

Structural loads are determined based on confirmed installation location, applicable building code requirements, and environmental loading considerations.

Documentation references general Canadian snow and wind load considerations commonly associated with this product type.

Wind loading considers exposure classification, terrain effects, and importance category based on building use.

Final structural configuration is prepared at time of order based on project location and governing building regulations.



Building Code Alignment

Final structural configuration is prepared to align with applicable provincial and municipal building code requirements based on confirmed installation location.

Use classification, permitting requirements, and foundation design are determined by the authority having jurisdiction.



Size-Specific Performance Advantage

The compact structural footprint allows enclosed vehicle storage while minimizing land coverage and site impact.

The 16-foot building width supports standard single-vehicle parking while maintaining efficient lot utilization.

This size is commonly selected where space limitations, setback restrictions, or accessory building coverage limits prevent construction of larger garage formats.

The rigid-frame system provides structural efficiency while maintaining unobstructed interior space for vehicle positioning.



Interior Usable Space Planning

Interior usable dimensions vary depending on wall system thickness, structural framing depth, and door configuration.

Actual usable interior width and length are reduced by wall assemblies and structural members.

Interior maneuvering space depends on vehicle size, door placement, and storage integration.

Interior usable space may vary depending on door configuration, framing placement, and foundation layout.

Vehicle height, door opening size, and entry clearance should be evaluated during planning to ensure compatibility with the intended vehicle type.



Building Dimension Classification

Nominal building dimensions describe exterior structural footprint.

Actual finished exterior dimensions and interior clearances vary depending on panel profile, framing depth, trim systems, and foundation interface.

Interior usable width and length are typically reduced by wall system thickness and structural framing depth.

Final as-built dimensions are confirmed in structural drawings supplied with the building kit.



Authority Planning Insight

This size is commonly specified when property owners require enclosed parking for a single vehicle but must maintain minimal structural footprint due to lot size limitations.

Compact garages of this scale are frequently selected where driveway parking requires weather protection but full-size garages exceed zoning allowances.

Within residential garage sizing progression:

16×20 → minimal footprint single-vehicle enclosure

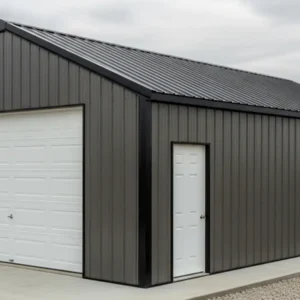

20×24 → balanced parking + storage

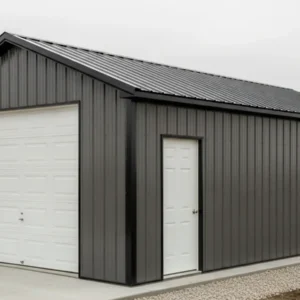

24×24 → side-by-side vehicle readiness
20×30 → depth-focused storage zoning



Delivered Package Description

Building components are delivered in packaged steel sections prepared for offloading and staged assembly at the installation site.

Delivered materials typically include:

• prefabricated primary structural members
• secondary framing components
• profiled steel panel systems
• hardware and fastening systems
• labeled assembly components
• printed structural documentation

Components are packaged for freight shipment.



Assembly Complexity

Typical residential accessory structure installation.
Moderate assembly complexity.

Assembly is typically performed by the owner’s selected contractor or installation team.

Typical project planning includes site preparation, foundation installation, delivery scheduling, and on-site assembly.



Lifecycle & Durability Context

Service life depends on coating system performance, enclosure integrity, foundation stability, and maintenance practices.

Steel enclosure systems of this scale are commonly selected for long-term residential vehicle storage rather than temporary accessory structures.



Manufacturing & Fabrication Standards

Structural steel components are fabricated using standardized manufacturing processes for prefabricated building systems.

Components are produced for mechanical assembly using prefabricated connection geometry and labeled structural members.

Protective exterior coating systems are applied to cladding components to support exterior building envelope function.



Condensation & Ventilation Planning

Condensation control depends on site climate conditions, interior usage patterns, and ventilation design.

Ventilation strategies, insulation systems, and moisture management solutions are determined separately based on project requirements.

Proper condensation management planning is recommended for enclosed steel structures in Canadian climates.



Structural Safety & Anchoring Considerations

Building performance depends on proper foundation design, anchoring, erection procedures, and compliance with supplied structural documentation.

Installation must follow accepted construction practices and applicable building regulations.

Foundation design must support concentrated structural loads and anchoring forces.



What’s Included

Structural steel framing components
Steel wall and roof panels
Hardware and fastening systems
Printed structural documentation



What’s Not Included

Foundation construction
Installation labor
Overhead doors
Windows
Insulation systems
Electrical work
Interior finishing

Typical Optional Components (Not Included)

Overhead sectional garage doors
Walk-in service doors
Insulation systems
Ventilation systems
Interior liner panels
Window systems
Electrical integration

Optional components are selected separately based on project requirements.



Freight Delivery Explanation

Building components are shipped by freight as packaged steel materials.

Shipment consists of bundled structural and panel components.
Total shipment weight typically ranges from approximately 2,000 to 4,500 lbs depending on configuration.
Exact shipment details are confirmed prior to dispatch.

Unloading equipment and staging space must be arranged by the buyer.

Delivery scheduling is coordinated prior to shipment.



Site Planning Considerations

Foundation design
Setback requirements
Driveway alignment
Delivery vehicle access
Assembly staging area
Municipal permitting requirements



Application Classification

Typical use classification: Detached residential accessory building used for vehicle storage and property storage; interior work activities determined by owner use and local regulations.

Use category and occupancy classification are determined by the authority having jurisdiction.



Structural Responsibility Statement

Building performance depends on proper foundation design, anchoring, erection procedures, and compliance with supplied structural documentation.

Installation must be performed in accordance with applicable building regulations and accepted construction practices.



Product Scope Notice

This product is a physical prefabricated steel building kit shipped by freight.
No installation, construction, engineering consulting, or labor services are sold or provided.
Ownership of all physical components transfers to the buyer upon shipment.
This listing is for packaged building materials only and does not represent a constructed structure.



Canadian Performance Context

Structural documentation references general Canadian snow and wind load considerations commonly associated with this product type.

Steel enclosure construction provides enclosed protection from snow accumulation, wind exposure, and seasonal weather conditions typical across Canadian residential environments.



Decision Summary

Compact footprint accessory garage.

Choose this size if you need:

• enclosed protection for one vehicle
• minimal site coverage
• efficient use of limited lot space
• simple residential vehicle storage

Consider larger sizes if:

• storage space is required
• wider maneuvering clearance is needed
• multiple vehicles must be accommodated
