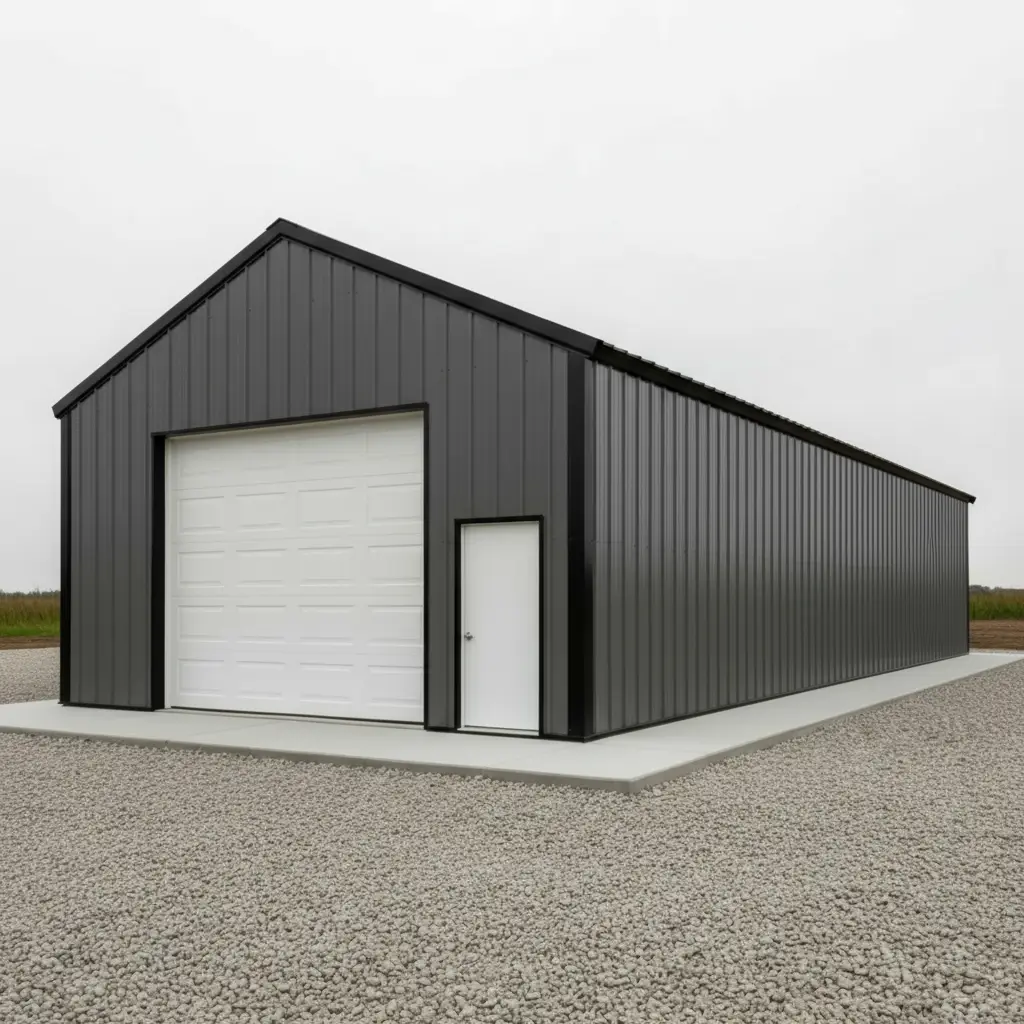

30x40x18 High Clearance Steel Garage Structure

Designed for property owners who require maximum vertical clearance for tall vehicles, elevated equipment, overhead systems, or high-stack storage within a compact building footprint.

This configuration provides extended interior height for oversized equipment accommodation and large enclosed volume while maintaining manageable site coverage typical of accessory building layouts.



Key performance characteristics

Clear span interior width for unrestricted equipment movement
Extended vertical clearance for tall vehicles and overhead installations
Large enclosed volume for protected storage and operational flexibility
Compact footprint with maximum height utilization
Improved overhead working space for lighting, ventilation, and suspended systems



Size-specific advantage

Compared with 30×40×16 structures, the 18-foot wall height significantly increases vertical working envelope and overhead clearance capacity.
Compared with wider buildings, this configuration maximizes interior height without expanding structural footprint.



Product Classification

Prefabricated structural steel building kit
Pre-Engineered Metal Building system
Detached accessory garage or storage structure
Physical packaged building materials shipped by freight



Product Overview

The 30×40×18 configuration provides maximum vertical clearance within a moderate structural footprint. This format is commonly selected where standard wall heights cannot accommodate tall vehicles, elevated storage systems, or overhead mechanical installations.

High-clearance garages of this scale are frequently planned where overhead working space, tall equipment accommodation, or increased enclosed air volume is required.

Steel enclosure systems of this scale are typically selected for permanent high-clearance storage infrastructure rather than temporary accessory structures.



Technical Specifications

Building Width: 30 ft
Building Length: 40 ft
Wall Height at Eave: 18 ft
Interior Area: 1,200 sq ft

Clear Interior Height at Eave: approximately 18 ft before interior installations
Peak Height: varies by roof geometry
Roof Type: gable configuration

Structural System: rigid-frame portal system
Primary Frame Type: moment-resisting rigid frame
Interior Span: clear span primary structural frame



Structural Geometry

Primary rigid frames form a portal structural system that develops moment resistance at column-rafter connections.
Clear span geometry allows unobstructed interior width.
Roof and lateral loads transfer through rafters into columns and then into foundation bearing zones.



Materials and Certifications

Profiled structural steel panel system
Protective coated exterior cladding
Mechanical fastener panel attachment

Manufactured in accordance with CSA A660 requirements where applicable
Fabrication performed under CWB W47.1 certification where applicable



Structural Load Design Basis

Structural design criteria depend on:

installation location
snow load zone
wind exposure classification
terrain conditions
importance category
elevation and environmental exposure

Documentation references general Canadian snow and wind load considerations commonly associated with this product type.
Final structural configuration is determined at time of order based on confirmed project location.



Design Envelope Clarification

Member sizing, connections, and structural configuration vary according to project-specific loading and site conditions. Final structural parameters are documented in the supplied structural drawings.



Nominal vs Actual Dimensions

Nominal dimensions represent exterior structural footprint.
Actual finished exterior size and interior usable space vary based on framing depth, panel profile, trim systems, and foundation interface.
Final as-built dimensions are confirmed in structural drawings.



Interior Volume Increase from Height

Increasing wall height from 14 ft to 18 ft increases enclosed air volume by approximately 28–32 percent depending on roof pitch and structural depth.
This larger volume supports tall equipment storage, overhead installations, and increased vertical working space.



Primary Use-Case Engineering

Typical operational layout supports:

tall vehicle parking zone
vertical storage zone
overhead installation area
clear circulation pathway

Example use scenario:

A tall equipment unit or elevated vehicle system can be positioned within the front entry zone while maintaining substantial overhead clearance for lighting, ventilation, or suspended storage depending on door placement and interior configuration.



Size-Specific Performance Advantage

The 18-foot wall height significantly increases usable vertical envelope for equipment clearance, stacked storage, and elevated installation compared with lower wall heights. This enables vertical operational flexibility without expanding building footprint.



Product Hierarchy Positioning

Within 30-foot width garage progression:

30×30 compact storage
30×40 parking and workspace separation
30×40×14 increased clearance workspace
30×40×16 high-clearance heavy duty enclosure
30×40×18 maximum vertical clearance structure



Interior Planning Model

Typical layout configuration includes:

front equipment or vehicle entry zone
rear storage or service zone
sidewall storage systems
central movement pathway

Layout depends on door configuration, storage depth, and equipment height.



Interior Clearance Planning

Usable vertical clearance is reduced by:

roof purlin depth
lighting systems
mechanical equipment
insulation thickness
liner panel installation

Door track assemblies and suspended components affect effective clearance.



Structural Height Implications

Increasing wall height increases structural demand.

Increased wall height raises column slenderness ratio and bending demand, which typically requires larger structural members and increased base anchoring forces.

Greater wall height also increases wind pressure area and structural lever arm effects depending on exposure conditions.



Door Opening Geometry and Clearance Planning

Door opening height is influenced by structural framing depth, header configuration, and door track systems.

Increased wall height may require taller door systems and track assemblies, which can influence door system cost and installation requirements.

Buyers should confirm required equipment or vehicle entry clearance before finalizing door installation.



Vertical Storage Load Considerations

High vertical storage introduces load transfer requirements to slab or structural supports.
Wall-mounted storage generates lateral and overturning forces.
Anchoring and slab capacity must be engineered separately.



Structural Engineering Explanation

Roof and lateral loads transfer through rigid frame members into structural columns.
Column reactions are transmitted through base plates and anchor bolts into reinforced foundation bearing zones designed to resist axial, shear, and overturning forces.



Lateral Stability System

Structural stability is achieved through portal frame action, roof diaphragm behavior, and bracing elements integrated into the structural system.



Slab and Floor Load Planning

Concrete slab and foundation systems are not included.
Foundation design must support structural reactions, vehicle loads, and equipment loads.



Building Code Alignment

Permitting requirements, foundation approval, and structural documentation review are subject to the authority having jurisdiction.
Interior use classification is determined by local zoning and occupancy regulations.

In many municipalities, accessory building height above specific thresholds may change setback requirements or planning approval conditions.



Site Planning and Installation Requirements

Foundation preparation
Delivery vehicle access
Assembly staging area
Erection equipment
Zoning compliance



Delivered Package Definition

Shipment includes prefabricated structural steel members, secondary framing components, steel panel systems, hardware, and structural documentation.
This product consists of tangible structural building materials only.



Freight Delivery

Components are shipped by freight as bundled steel materials.
Unloading and staging are arranged by the buyer.



Assembly Complexity

Contractor assembly required.
Structural erection sequencing, temporary bracing, and installation safety procedures are the responsibility of the installation contractor.



Environmental and Climate Performance

Steel enclosure construction provides protection from snow accumulation, wind exposure, precipitation, and seasonal temperature variation typical of Canadian environments.
Condensation management and ventilation planning depend on building use and climate conditions.

Larger enclosed air volume may increase heating demand depending on insulation and usage patterns.



Operational Limitations

Not designed for crane loading
Not designed for multi-storey structural loading
Not designed for structural expansion



Use-Case Decision Matrix

Choose this size if:

maximum vertical clearance is required
tall equipment must be enclosed
overhead installation space is needed
large interior air volume is beneficial

Consider larger buildings if:

multiple oversized vehicles must be stored
extended workflow depth is required
industrial scale operations are planned



Project Planning Checklist

Confirm zoning compliance
Prepare foundation design
Verify door height requirements
Confirm equipment clearance
Plan delivery access



Product Comparison Table

30×40 standard storage enclosure
30×40×16 high-clearance garage
30×40×18 maximum vertical clearance structure



Structural Responsibility and Scope Notice

This product consists of prefabricated structural building materials only.
No installation, construction, or engineering services are included.
Building performance depends on proper foundation design, anchoring, erection, and compliance with supplied structural documentation.
Ownership transfers upon shipment.



Canadian Performance Context

Steel enclosure construction provides protection from snow loads, wind exposure, and seasonal weather conditions typical across Canadian regions.



What Is Included

Structural framing components
Steel wall and roof panels
Hardware and fasteners
Printed structural documentation



What Is Not Included

Foundation construction
Installation labor
Doors
Electrical systems
Insulation systems
