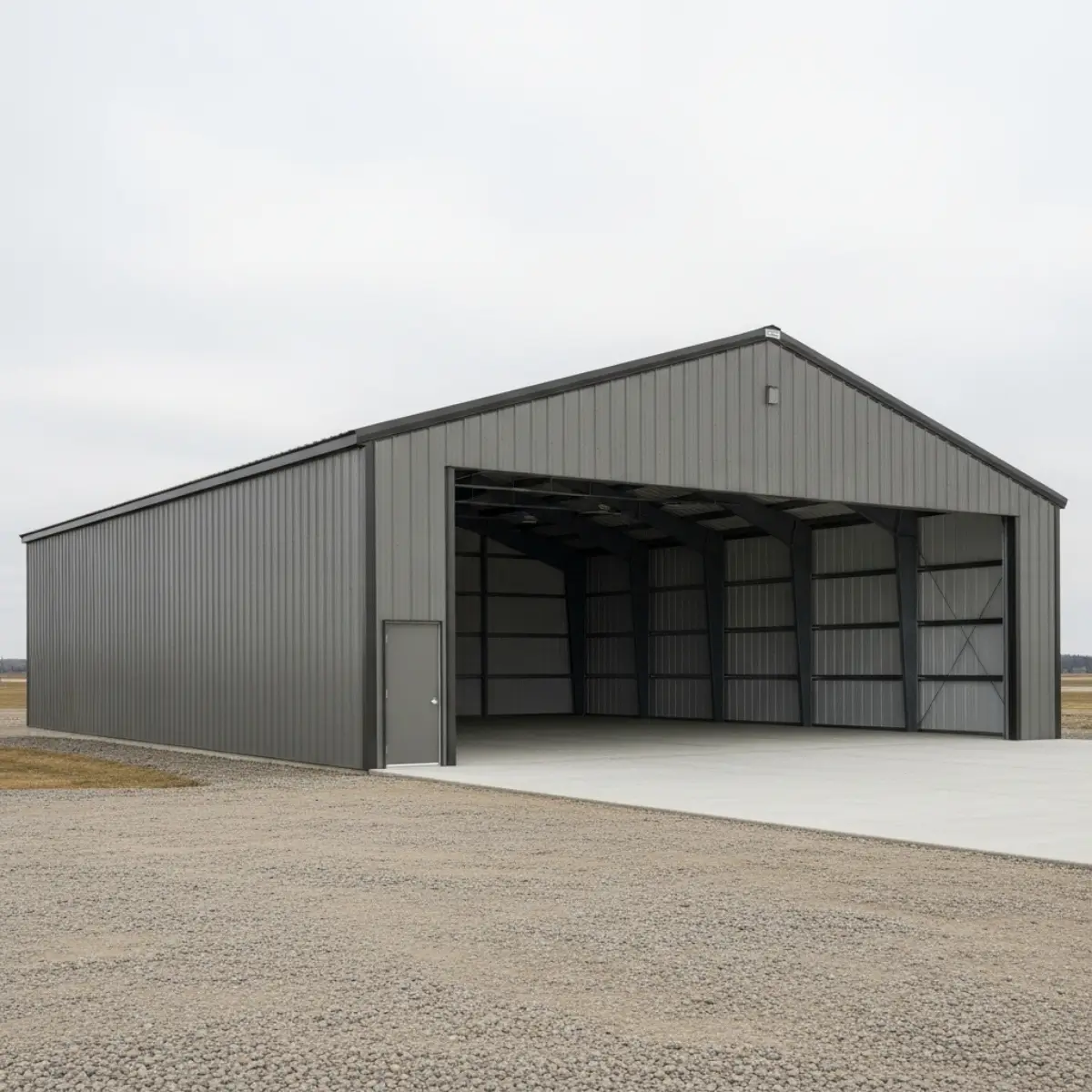

100X100X18 Aircraft Hangar Kit – Large Clear-Span Hangar

Product Overview

The 100×100×18 Aircraft Hangar Kit is intended for applications where balanced interior dimensions and unrestricted movement within the enclosure are prioritized. This prefabricated steel building kit is supplied as physical components that assemble into a wide, open structure without interior columns, supporting adaptable aircraft storage layouts and equipment placement.

Best for: Owners requiring a large, square clear-span hangar layout with equal width and depth for flexible aircraft positioning and interior circulation.

All items supplied are tangible components delivered as part of the steel building kit.



Quick Answers

• Product type: Physical prefabricated steel building kit
• Shipping method: Freight delivery
• Installation included: No
• Drawings included: Yes (printed documentation for permitting/reference)
• Best for: Large square-layout aircraft storage



Structural Components & Materials

This hangar kit utilizes a clear-span rigid steel I-beam framing system manufactured using CSA A660 certified structural steel components. Fabrication is completed under CWB certification to CSA W47.1. The enclosure system includes 26-gauge Canadian-made corrugated steel wall and roof panels, along with trim, fasteners, connection plates, clips, angles, bracing, downspouts, and elbows compatible with the framing system.

Printed structural and foundation drawings are included as part of the physical kit documentation for general permitting and reference purposes. These documents provide standard informational reference commonly associated with this product type.



Size-Specific Clearance Advantage

The equal 100-foot width and 100-foot depth create a highly balanced interior footprint that supports flexible aircraft positioning, wider turning radii, and uniform circulation paths throughout the enclosure. The 18-foot wall height accommodates taller tail profiles and overhead clearance requirements commonly associated with larger hangar layouts.

This square configuration reduces layout constraints compared to elongated hangar formats and allows aircraft, equipment, and storage zones to be arranged with greater symmetry.



How This Hangar Size Fits Into a Complete Hangar Lineup

The 100×100 configuration represents a large-format hangar tier positioned above rectangular layouts such as 80×100. It is commonly selected when equal lateral and longitudinal clearance is preferred over extended depth or compact footprint efficiency.

Compared to an 80×100 aircraft hangar, the 100×100 configuration emphasizes balanced movement space and uniform circulation rather than elongated interior runs.

For projects requiring multiple aircraft separation or deeper zoning, larger rectangular hangar formats may be evaluated.



Why Choose 100×100 Over Rectangular Hangar Sizes

• Equal width and depth simplify interior layout planning
• Improved aircraft maneuvering clearance
• Symmetrical circulation paths
• Flexible zoning for aircraft and support equipment



When Not to Choose This Size

This size may not be suitable where site width is limited or where extended linear storage is preferred over balanced interior proportions. Buyers seeking compact footprint efficiency may consider smaller rectangular hangar configurations.



Design Trade-Offs and Layout Priorities

This configuration prioritizes balanced interior proportions and movement flexibility over minimized enclosure footprint. Layouts favor uniform spacing and adaptable aircraft positioning rather than length-driven storage efficiency.



Design Consideration Note

This size is commonly selected in projects where symmetrical interior clearance and flexible aircraft positioning are prioritized over compact site utilization.



Typical Storage Scenarios

• Single aircraft with expanded circulation clearance
• Multiple aircraft positioned within a shared enclosure
• Aircraft and aviation equipment storage
• Balanced hangar layouts with central circulation zones
• Large private aviation storage enclosures



Key Features

• Clear-span rigid steel I-beam framing system
• CSA A660 certified structural steel components
• Fabrication under CWB certification to CSA W47.1
• 26-gauge Canadian-made steel wall and roof panels
• Structural connection plates, clips, angles, and bracing
• Weather-sealed fasteners, trim, downspouts, and elbows
• Compatibility with common reinforced concrete slab foundations prepared by others



Technical Specifications

Width: 100 ft
Length: 100 ft
Height: 18 ft
Frame Type: Clear-span rigid steel I-beam framing
Roof Style: Gable steel roof system
Panel Thickness: 26-gauge steel
Certifications: CSA A660; CWB CSA W47.1



What’s Included

• Primary rigid steel frames
• Secondary framing including purlins, girts, angles, and bracing
• Steel wall panels
• Steel roof panels
• Trim components, fasteners, downspouts, and elbows
• Printed structural and foundation drawings for permitting/reference



Product Scope Notice

This product is a physical prefabricated steel building kit shipped by freight.
No installation, construction, consulting, or labor services are sold or provided.
Ownership of all physical components transfers to the buyer upon shipment.

Aircraft compatibility, door systems, and clearance suitability must be verified by the buyer based on the intended aircraft type.



Canadian Performance Summary

This hangar configuration provides a large, balanced clear-span enclosure suitable for Canadian climate conditions while supporting flexible aircraft positioning and circulation. The square footprint allows adaptable interior layouts without relying on elongated building proportions.
This size is frequently selected where interior symmetry and movement flexibility are prioritized over compact footprint efficiency.
